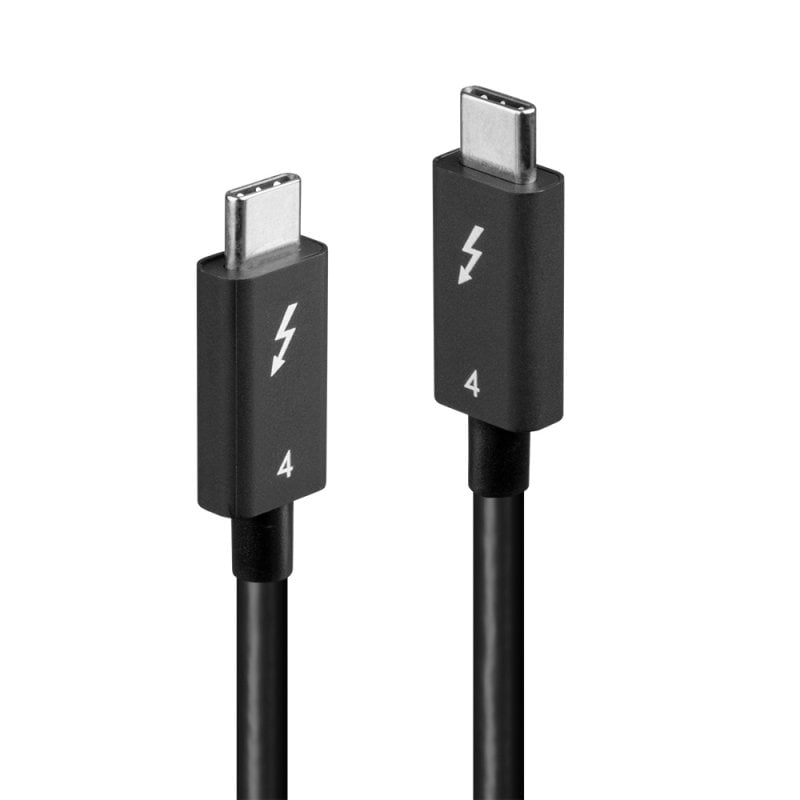

1m Thunderbolt 4 Cable, 40Gbps, passive

Part No: 31120
  • £67.79
13 In Stock Now   |
Loading...

Product Summary

  • Blazing fast data transfers speeds up to 40Gbps (bi directional), perfect for ultra fast file transfers, rapid backups and seamless high resolution media streaming in demanding professional workflows.
  • Delivers up to 100W of power via USB Power Delivery (20V 5A) to rapidly charge Thunderbolt 4 compatible laptops, tablets, and peripherals.
  • Supports video at up to 8K 60Hz via DisplayPort Alternate Mode, enabling ultra high resolution video output for modern laptops, workstations, and AV systems. Supports PCIe 3.0 with bandwidth of up to 32Gbps.
  • Industrial grade construction featuring triple shielded cable, soft TPE jacket, and nickel-plated connectors for durable, corrosion resistant performance and reliability; ideal for demanding environments where maintaining signal integrity and long lasting durability matter most.
  • A 2 year warranty makes this cable ideal for mid-term use in both professional and commercial installations.

This certified Thunderbolt 4 passive cable guarantees full compatibility with Thunderbolt 4, Thunderbolt 3, USB4, and previous USB standards without active signal boosters.

An integrated E Mark chip enables safer 100W (20V 5A) fast charging with USB Power Delivery, allowing for the voltage and current to be automatically adjusted to the needs of connected devices such as tablets and laptops to prevent overvoltage and overcurrent.

Thunderbolt 4 delivers high speed 40Gbps transfer speeds (bi directional), doubling the performance offered by previous USB generations. Whether you're transferring massive design files, editing high resolution videos directly from external storage, or connecting next gen peripherals, this standard ensures maximum efficiency and zero bottlenecks.

DisplayPort Alternate Mode enables crisp 4K and 8K video output at 60Hz, making it perfect for connecting to ultra high resolution displays and AV equipment. The robust triple shielded design with tinned copper conductors and nickel plated connectors ensures excellent signal quality and strong resistance to EMI/RFI in challenging environments.

Supporting up to 32Gbps PCIe data throughput, this cable makes demanding workflows effortless whether you´re connecting external GPUs, ultra-fast SSDs, or professional grade docking stations. Certified for full Thunderbolt 4 performance, it ensures low latency, rock solid stability, and future ready compatibility with USB4 and Thunderbolt 3 devices.

With reversible USB Type C connectors and full bi directional communication, these cables guarantee simple, reliable connections every time.

Connectors

  • Connector A: Thunderbolt 4 USB Type C Male
  • Connector B: Thunderbolt 4 USB Type C Male
  • Housing Material: PC
  • Shielding in head shell: -
  • Connector Plating: Nickel
  • Pin Construction: -
  • Pin Plating: Nickel
  • Dimensions (approx.) WxDxH: 12.35x22.7x6.5mm (0.49x0.89x0.26in)

Cable Construction

  • Jacket Diameter: 4.6mm (0.18in)
  • Jacket Material: TPE
  • Conductor Material: Copper
  • Conductor Gauge Power: 24AWG
  • Conductor Gauge Data: 30AWG
  • Shielding: Copper Braid

Specifications

  • Length: 1m (3.28ft)
  • Colour: Black
  • Type: Round
  • Standard: Thunderbolt 4
  • Supported Bandwidth: 40Gbps
  • Maximum Power: PD 3.0 with up to 100W (20V 5A)
  • E-Mark: Yes
  • Maximum Resolution: 4096x2160@120Hz, 7680x4320@60Hz
  • Supported Protocols: Thunderbolt 4, Thunderbolt 3, PCIe 3.0, DisplayPort 2.0, USB4, USB 3.2, USB 2.0
  • Nominal Attenuation: -
  • Minimum Bend Radius: 46mm (1.18in)
  • Operating Temperature: 10°C - 40°C (50°F - 104°F)
  • Storage Temperature: -10°C - 50°C (14°F - 122°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 2
  • Product Compliance: RoHS, REACH, California Proposition 65

Purchasing Information

  • No.: 31120
  • EAN: 4002888311205

This product is also available in other lengths

  • 31120 - 1m (3.28ft)
  • 31121 - 2m (6.56ft)
