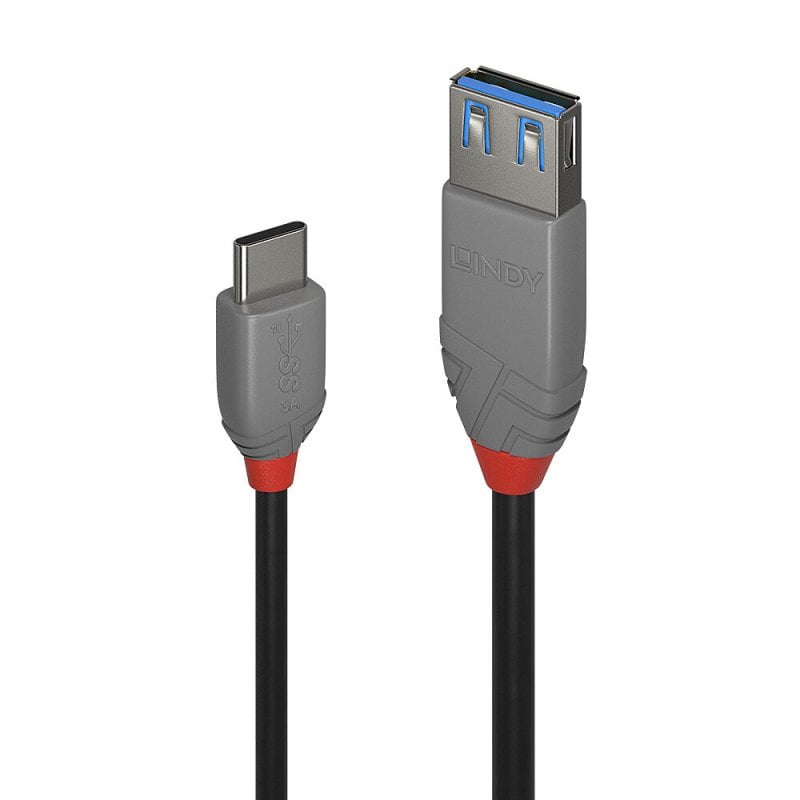

0.15m USB 3.2 Type C to A Adapter Cable, 10Gbps, Anthra Line

Part No: 36895
  • £7.09
Item out of Stock   |
Loading...

Product Summary

  • Professional choice USB 3.2 Gen 2 Type C to A Adapter cable for commercial and high performance AV and IT installations
  • SuperSpeed USB 10Gbps - supports data transfer speeds up to 10Gbps (USB 3.2 Gen 2, USB 3.1 Gen 2, USB 3.1)
  • Robust PVC housing, gold plated connectors and contacts
  • Triple shielded cable, corrosion resistant tinned copper conductors
  • 10 year warranty

The Anthra Line USB 3.2 Type C to A cable from Lindy's Cable Lines concept is the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

USB bandwidths up to 10Gbps are supported for rapid transfer of large data volumes.

We have adapted the naming of our USB 3 cables to follow the updated USB specification.
USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps
USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps
USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

Connectors

  • Connector A: USB 3.2 Type C Male
  • Connector B: USB 3.2 Type A Female
  • Housing Material: PVC
  • Shielding in head shell: Copper foil
  • Connector Plating: Nickel
  • Pin Construction:
    • C: Copper
    • A: Brass
  • Pin Plating: Gold
  • Dimensions (approx.) WxDxH:
    • C: 11.0x25.5x7.3mm (0.43x1.00x0.29in)
    • A Female: 17.0x35.1x9.8mm (0.67x1.38x0.39in)

Cable Construction

  • Length: 0.15m (0.49ft)
  • Standard: USB 3.2 Gen 2 (USB 3.1 Gen 2, USB 3.1)
  • Power Delivery: -
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 4.5mm (0.18in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge Power: 24AWG
  • Conductor Gauge Data: 30AWG
  • Shielding: Tinned Copper Braid 50%

Specifications

  • Supported Bandwidth: 10Gbps
  • Maximum Resolution: -
  • Nominal Attenuation: 0.5Mhz-15Ghz < 40dB
  • Minimum Bend Radius: 45mm (1.77in)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: 0°C - 70°C (32°F - 158°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Product Compliance: RoHS, REACH, California Proposition 65 & UL (raw cable only)

Purchasing Information

  • No. 36895
  • EAN: 4002888368957
