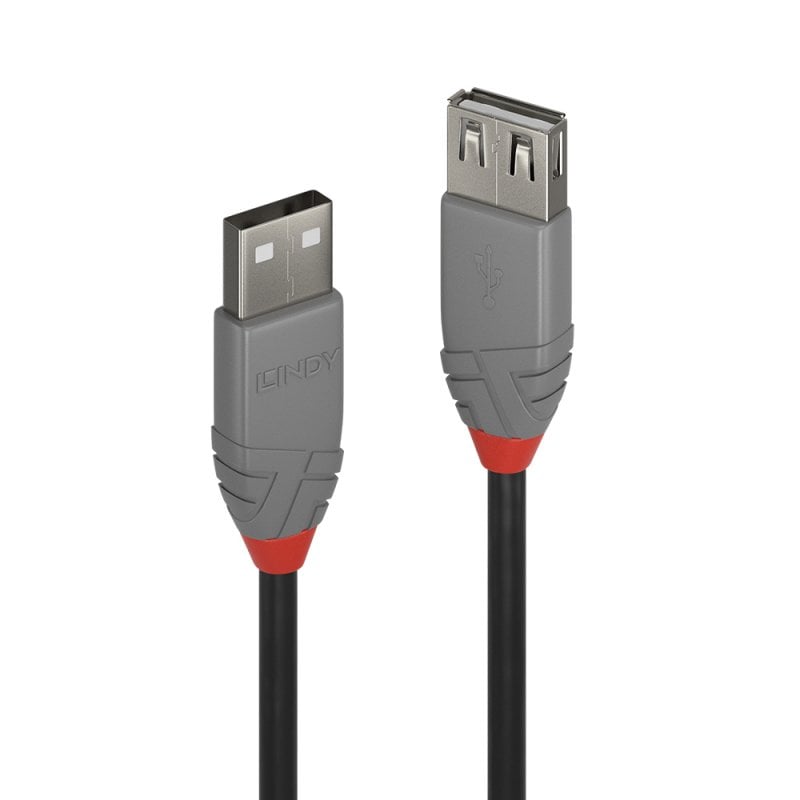

0.2m USB 2.0 Type A Extension Cable, Anthra Line

Part No: 36700
  • £2.03
3898 In Stock Now   |
Loading...

Product Summary

  • Professional choice USB 2.0 Type A Extension cable for commercial and high performance AV and IT installations
  • Supports data transfer speeds up to 480Mbps
  • Robust PVC housing, nickel connectors and gold plated contacts
  • Double shielded cable, corrosion resistant tinned copper conductors
  • USB 2.0, 480Mbps; 10 year warranty

From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A Extension cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel connectors maintain optimal signal integrity and maximum reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

Anthra Line USB 2.0 Type A Extension cables are available in lengths from 0.2m to 5m.



Connectors:

  • Connector A: USB 2.0 Type A Male
  • Connector B: USB 2.0 Type A Female
  • Housing Material: PVC
  • Connector Plating: Nickel
  • Pin Construction: Copper
  • Pin Plating: 24K Gold
  • Dimensions, USB A Male (approx.) WxDxH: 15.5x35x7.8mm (0.61x1.38x0.31in)
  • Dimensions, USB A Female (approx.) WxDxH: 17x35x9.8mm (0.67x1.38x0.39in)

Cable Construction:

  • Length: 0.2m (0.66ft)
  • Standard: USB 2.0
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 4.4mm (0.17in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 26/28AWG
  • Shielding: Aluminium Magnesium Braid

Specifications:

  • Supported Bandwidth: 480Mbps
  • Maximum Resolution: -
  • Nominal Attenuation: 5.8db/km
  • Minimum Bend Radius: 16mm (0.63in)
  • Operating Temperature: 0°C - 60°C (32°F - 140°F)
  • Storage Temperature: 0°C - 60°C (32°F - 140°F)

Miscellaneous:

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHS, REACH, UL (raw cable only)

Purchasing Information:

  • No. 36700
  • EAN: 4002888367004

This product is also available in other lengths

  • 36690 – 0.2m (0.66ft)
  • 36691 - 0.5m (1.64ft)
  • 36692 - 1m (3.28ft)
  • 36693 - 2m (6.56ft)
  • 36694 - 3m (9.84ft)
  • 36695 - 5m (16.44ft)
Showing our 1 review for 0.2m USB 2.0 Type A Extension Cable, Anthra Line. Write a review
Review Summary - 5 out of 5 based on 1 rating.
June 8, 2023 | Philip
Excellent cable

In bad weather I often connect my mobile broadband dongle to Lindy's USB extension cables and it improves my mobile broadband signal and speed on my dongle significantly when I'm on my laptop. I have the 0.2m and 0.5m versions of these cables and they have always worked brilliantly.
