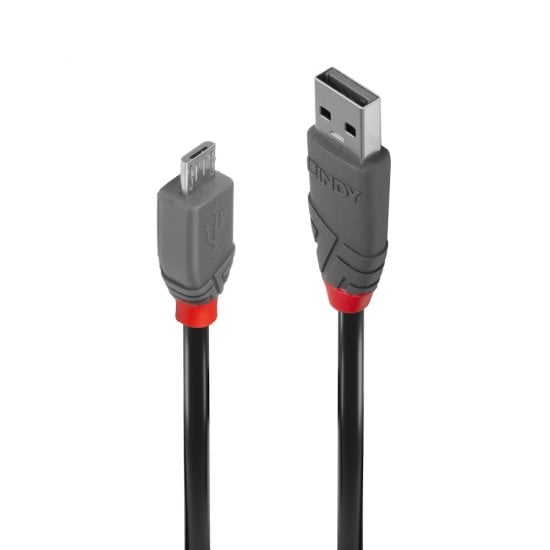

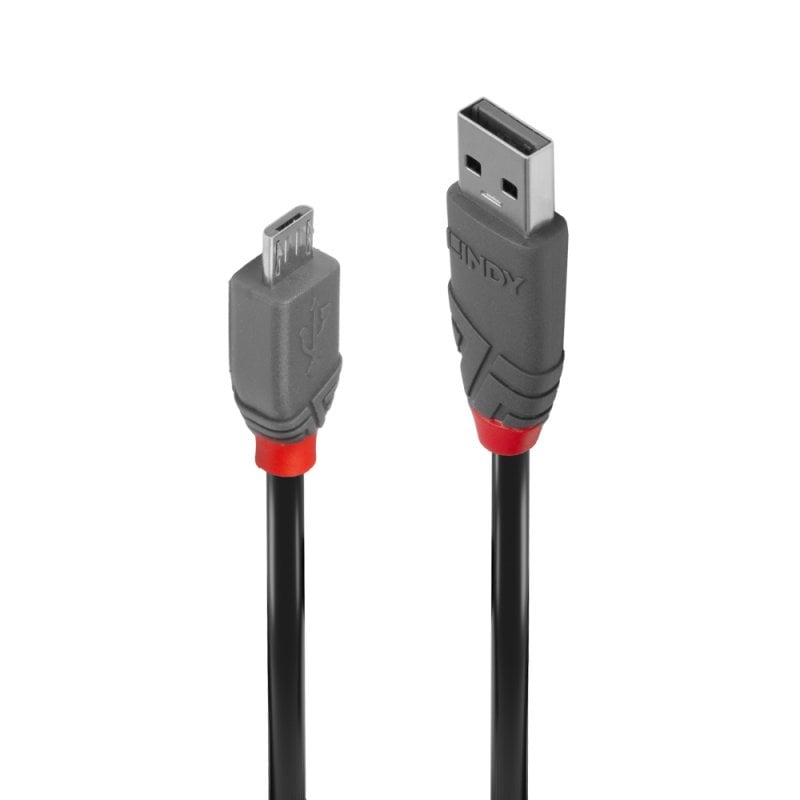

0.5m USB 2.0 Type A to Micro-B Cable, Anthra Line

Part No: 36731
  • £2.17
3111 In Stock Now   |
Loading...

Product Summary

  • Professional choice USB 2.0 Type A to Micro-B cable for commercial and high performance AV and IT installations
  • Supports data transfer speeds up to 480Mbps
  • Robust PVC housing, nickel connectors and gold plated contacts
  • Double shielded cable, corrosion resistant tinned copper conductors
  • USB 2.0, 480Mbps; 10 year warranty

From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to Micro-B cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel connectors maintain signal integrity and reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

Anthra Line USB 2.0 Type A to Micro-B cables are available in lengths from 0.2m to 5m.

Connectors:

  • Connector A: USB 2.0 Type A Male
  • Connector B: USB 2.0 Type Micro-B Male
  • Housing Material: PVC
  • Connector Plating: Nickel
  • Pin Construction: Copper
  • Pin Plating: 24K Gold
  • Dimensions, USB A (approx.) WxDxH: 15.5x35x7.8mm (0.61x1.38x0.31in)
  • Dimensions, USB Micro-B (approx.) WxDxH: 10x24x7.6mm (0.29x0.95x0.30in)

Cable Construction:

  • Length: 0.5m (1.64ft)
  • Standard: USB 2.0
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 3.5mm (0.14in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 28AWG
  • Shielding: Aluminium Magnesium Braid

Specifications:

  • Supported Bandwidth: 480Mbps
  • Maximum Resolution: -
  • Nominal Attenuation: 5.8db/km
  • Minimum Bend Radius: 16mm (0.63in)
  • Operating Temperature: 0°C - 60°C (32°F - 140°F)
  • Storage Temperature: 0°C - 60°C (32°F - 140°F)

Miscellaneous:

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHS, REACH, UL (raw cable only)

Purchasing Information:

  • No. 36731
  • EAN: 4002888367318

This product is also available in other lengths:

  • 36730 – 0.2m (0.66ft)
  • 36731 - 0.5m (1.64ft)
  • 36732 - 1m (3.28ft)
  • 36733 - 2m (6.56ft)
  • 36734 - 3m (9.84ft)
  • 36735 - 5m (16.40ft)
Showing our 1 review for 0.5m USB 2.0 Type A to Micro-B Cable, Anthra Line. Write a review
Review Summary - 5 out of 5 based on 1 rating.
February 4, 2020 | gavoutwest
Excellent

Trying to connect a camera to my PC I found neither of my USB A to Micro-B cables worked. The camera showed 'USB connected' on its screen, so it was charging the battery... but no connectivity via the software on my PC. Realising my leads had both been supplied with other devices, as charging leads, I would need to get the (visually identical) lead with data connectivity I went to Lindy. Looking elsewhere there are so many reports of leads which don't work... I was looking for a reliable supplier at a sensible price.
This lead from Lindy is brilliant. Plug it in, and now I have my photos on my PC. Bought 2 (2 different lengths) as they are very cheap, and including them in 1 postage fee keeps the overall price down :)
