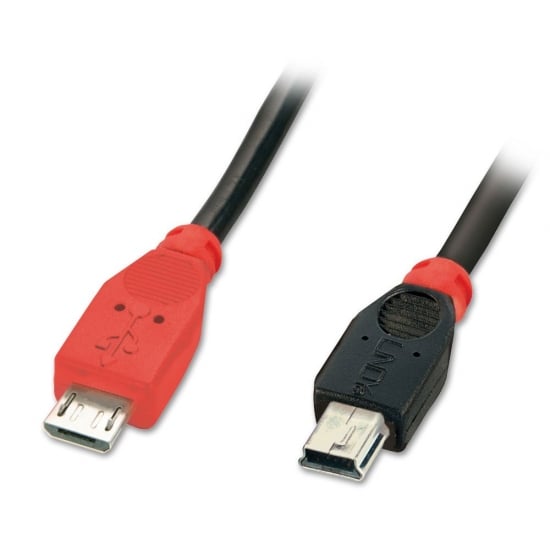

0.5m USB 2.0 Type Micro-B to Mini-B OTG Cable

Part No: 31717
  • £1.39
227 In Stock Now   |
Loading...

Product Summary

  • USB 2.0 Type Micro-B Male to Mini-B Male cable for On-The-Go power and data transfer
  • Features coloured connectors for better differentiation
  • Cable construction with copper conductors, aluminium braid and a protective PVC jacket
  • USB 2.0, Supports data transfer speeds of up to 480Mbps, backwards compatible with USB 1.1
  • 10-year warranty

The Lindy USB Type Micro-B to Mini-B OTG cable enables a direct connection between two USB devices, with one device being the host and the other one being the peripheral. The connectors feature different colours for better differentiation.

The red marked connector is the OTG host and should therefore be connected to the device which should serve as a host. Please note that the cable does only work in one direction.

The cable is compatible with many devices featuring a USB Type Micro-B/Mini-B port such as smartphones, cameras, E-Bike computers. It can e.g. be used to connect a GPS device to an E-Bike computer to power, or to transfer images from a camera directly to the smartphone.

Lindy USB Type Micro-B to Mini-B OTG Cables are available in the following lengths: 0.5m, 1m and 2m.




Connectors

  • Connector A: USB 2.0 Type Micro-B Male
  • Connector B: USB 2.0 Type Mini-B Male
  • Housing Material: PVC
  • Shielding in head shell: -
  • Connector Plating: Nickel
  • Pin Construction: Copper Alloy
  • Pin Plating: Gold
  • Dimensions (approx.) WxDxH:
    • Micro-B: 22.75x10.2x6mm (0.9x0.4x0.24in)
    • Mini-B: 22.75x10.2x6mm (0.9x0.4x0.24in)

Cable Construction

  • Length: 0.5m (1.64ft)
  • Standard: USB 2.0
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 3.5mm (0.14in)
  • Jacket Material: PVC
  • Conductor Material: Copper
  • Conductor Gauge Power: 28AWG
  • Conductor Gauge Data: 28AWG
  • Shielding: Aluminium Magnesium Braid

Specifications

  • Supported Bandwidth: 480Mbps
  • Nominal attenuation: 1-400MHz < 5.8dB
  • Minimum Bend Radius: 42mm (1.65in)
  • Operating Temperature: -10°C - 40°C (14°F - 104°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHS, REACH, UL (Raw Cable) & California Proposition 65

Purchasing Information

  • No.: 31717
  • EAN: 4002888317177

This product is also available in other lengths

  • 31717 - 0.5m (1.64ft)
  • 31718 - 1m (3.28ft)
  • 31719 - 2m (6.56ft)
Showing our 1 review for 0.5m USB 2.0 Type Micro-B to Mini-B OTG Cable. Write a review
Review Summary - 5 out of 5 based on 1 rating.
May 13, 2015 | Dave Wallis
Top quality cable delivered fast

I wanted a quality cable to replace the two cables (my OTG Mini USB to USB, and Standard micro USB to USB) as to be honest, both had been bought for peanuts and had the quality I had paid for (not great!). The Lindy USB 2.0 Cable Micro-B/Mini-B 0.5m, fitted the bill, and having ordered it Thursday Lunchtime, it was despatched Thursday, and delivered Friday. Talk about responsive service. Does the cable work, yes - flawlessly, it currently links my Mobius dash cam to my Samsung Note 4, allowing either transfer of video files or replay directly using the cable. A cable is a simple product, but it helps when it's made properly and does what it says on the tin. 5 stars indeed! Top marks for a Top Product and Top Quality service.
