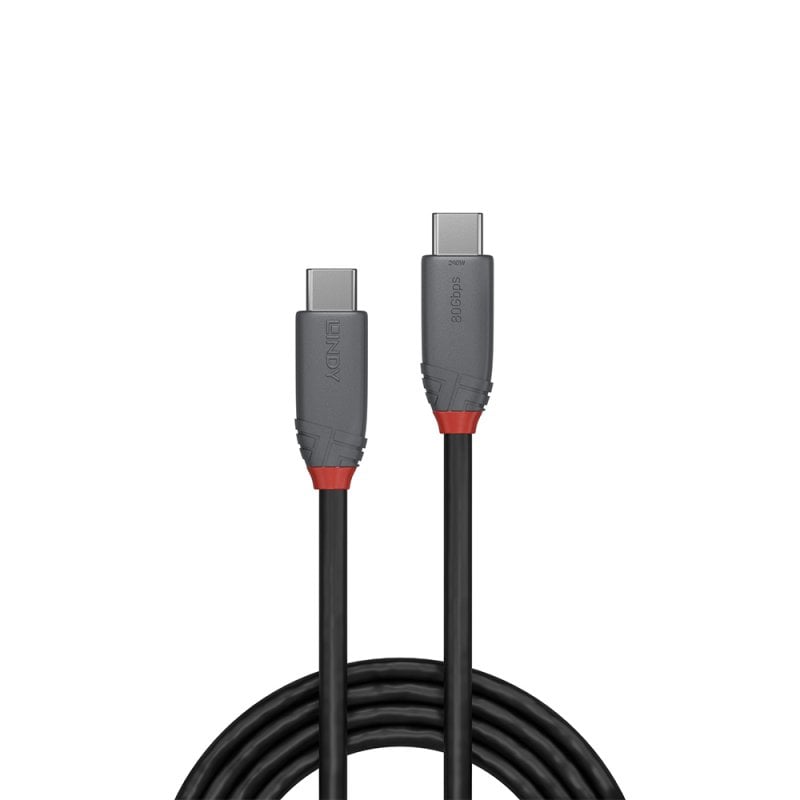

0.8m USB4 USB-C to C Cable, 80Gbps, 240W PD, Anthra Line

Part No: 37010
  • £0.00
360 In Stock Now   |
Loading...

Product Summary

  • Blazing-fast data transfer speeds up to 80Gbps, perfect for ultra-high-speed file transfers, lightning-fast backups, and seamless handling of 8K media content in the most demanding professional workflows.
  • Delivers up to 240W of power via USB Power Delivery (48V 5A) to rapidly charge laptops, tablets, and smartphones, keeping devices powered throughout demanding workdays.
  • Supports video at up to 8K 60Hz via DisplayPort Alternate Mode, enabling ultra high-resolution video output for modern laptops, workstations, and AV systems.
  • Advanced Micro-Coax Cable construction with silver-plated copper conductors, triple shielding, a soft TPE jacket, and gold-plated contacts for superior performance, signal integrity, and durability in mission-critical environments.
  • A 2 year warranty makes this cable ideal for mid-term use in both professional and commercial installations.
The Anthra Line USB4 Version 2 Type C cable from Lindy is purpose-built for high-performance AV and IT applications. Part of Lindy´s professional-grade Cable Lines range, it combines premium materials with advanced engineering for maximum reliability.

An integrated E-Mark chip enables safer 240W (48V 5A) fast charging with USB Power Delivery, allowing for the voltage and current to be automatically adjusted to the needs of connected such as mobile phones, tablets and laptops to prevent overvoltage and overcurrent.

USB4 version 2 is a next-generation specification that boosts bandwidth up to 80Gbps in bidirectional mode, delivering more than twice the performance of previous USB standards. For bandwidth-intensive tasks such as external storage, eGPU connections, and high-speed networking, a special mode can reallocate resources to deliver up to 120Gbps on the transmit side while maintaining 40Gbps for receiving data.

DisplayPort Alternate Mode enables crisp 4K and 8K video output at 60Hz, making it perfect for connecting to ultra-high-resolution displays and AV equipment.  The advanced Micro-Coax cable construction with triple shielding, silver plated copper conductors, and nickel-plated connectors ensures excellent signal quality and strong resistance to EMI/RFI in challenging environments.

With reversible USB Type C connectors and full bi-directional communication, this cable guarantees simple, reliable connections every time.

Connectors

  • Connector A: USB4 Type C Male
  • Connector B: USB4 Type C Male
  • Housing Material: TPE
  • Shielding in head shell: Copper foil
  • Connector Plating: Nickel
  • Pin Construction: Copper
  • Pin Plating: Gold
  • Dimensions (approx.) WxDxH: 34.3x12.7x7.3mm (1.35x0.50x0.29in)

Cable Construction

  • Jacket Diameter: 4.8mm (0.19in)
  • Jacket Material: TPE
  • Conductor Material: Silver plated copper, Tinned copper
  • Conductor Gauge Power: 23AWG
  • Conductor Gauge Data: 30AWG/33AWG/34AWG
  • Shielding: Copper Braid 85%

Specifications

  • Length: 0.8m (2.62ft)
  • Colour: Black
  • Type: Round
  • Standard: USB4 Version 2
  • Supported Bandwidth: 80Gbps
  • Maximum Power: PD 3.1 with ERP up to 240W (48V 5A)
  • E-Mark: Yes
  • Maximum Resolution: 3840x2160@60Hz, 7680x4320@60Hz
  • Supported Protocols: USB4, USB 3.2, USB 2.0, Thunderbolt 3, DisplayPort 2.0
  • Nominal Attenuation: 0.5Mhz-15Ghz-11dB
  • Minimum Bend Radius: 28.8mm (1.13in)
  • Operating Temperature: -20°C - 40°C (-4°F - 104°F)
  • Storage Temperature: -40 °C - 80°C (-40°F - 176°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 2
  • Product Compliance: RoHS, REACH, California Proposition 65 & UL (raw cable only)

Purchasing Information

  • No.: 37010
  • EAN: 4002888370103
