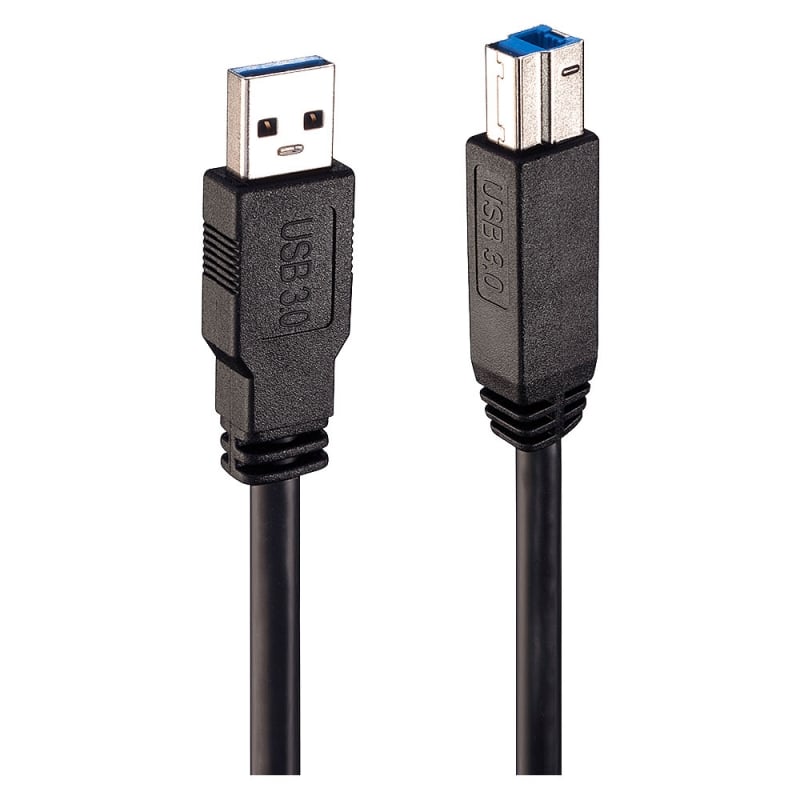

10m USB 3.2 5Gbps Type A to B Active Cable

Part No: 43098
  • £49.36
144 In Stock Now   |
Loading...

Product Summary

  • 10 metre USB 3.0 / USB 3.2 Gen 1 Active Cable
  • Supports transfer rates up to 5Gbps
  • Ideal for direct device connection
  • Plug & Play installation
  • 2 year warranty

The Lindy USB 3.2 Gen 1 Type A to B Active Cable provides a dependable solution for connecting a computer to a USB-B device, such as a printer or scanner, over extended distances. With a 10m reach and built-in active electronics, it supports high-speed data transfers of up to 5Gbps, ensuring performance without compromise.

This cable features USB-A and USB-B male connectors, making it easy to connect Type B devices directly to a computer and allowing for greater flexibility in device placement. It’s compatible with any USB Type A-equipped computer and offers straightforward plug-and-play installation for a seamless setup.

For optimal performance, this active cable is recommended for use with low-power or self-powered USB peripherals. It may not be suitable for high-power devices unless they have an independent power source.

Information about USB 3.0, 3.1 & 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Connectors
  • Connector A: USB Type A Male
  • Connector B: USB Type B Male
  • Power: -
  • Housing Material: Plastic
  • Connector Plating: Nickel
  • Pin Construction: Copper
  • Pin Plating: Nickel
  • Dimensions (approx.) WxDxH:
    • USB A Male: 16x49x9mm (0.63x3.7x0.35in)
      USB B Male: 10x52x13mm (0.39x2.05x0.51in)
      Repeater (2x): 35x100x15mm (1.26x3.94x0.59in)

Cable Construction
  • Length:  10m (32.8ft)
  • Standard: USB 3.2 Gen 1 / 3.0
  • Colour:  Black
  • Type:  Round
  • Jacket Diameter: 7mm +/- 0.15mm (0.28in +/- 0.01in)
  • Jacket Material: PVC
  • Conductor Material: Copper
  • Conductor Gauge: 28/28/22AWG
  • Shielding: 85% Aluminium

Specifications
  • Supported Bandwidth: 5 Gbps
  • Included Hubs: 2x USB 3.0
  • Nominal Attenuation:
    • 100 MHz, -1.5 dB
      1.25 GHz, -5.0 dB
      2.5 GHz, -7.5 dB
      7.5 GHz, -25 dB
  • Minimum Bend Radius: 60mm (2.36in)
  • Maximum Tensile Load: -
  • Operating Temperature: 0°C - 55°C (32°F - 131°F)
  • Storage Temperature: -20°C - 85°C (-4°F - 185°F)
  • Transmission Medium: Twisted Pair
  • Transmission Technology: USB 3.0

Miscellaneous
  • Packaging Type: Polybag
  • Packaging Dimensions: 300x300x80mm (11.81x11.81x3.15in)
  • Net Weight: 0.5 (1.1lb)
  • Gross Weight: 0.530kg (1.17lb)
  • Warranty (Years): 2
  • Certified: CE, UKCA, FCC, RoHS & REACH

Package Contents
  • USB 3.0 Active Cable 10m
  • Lindy Manual

Purchasing Information
  • No.: 43098
  • EAN: 4002888430982
