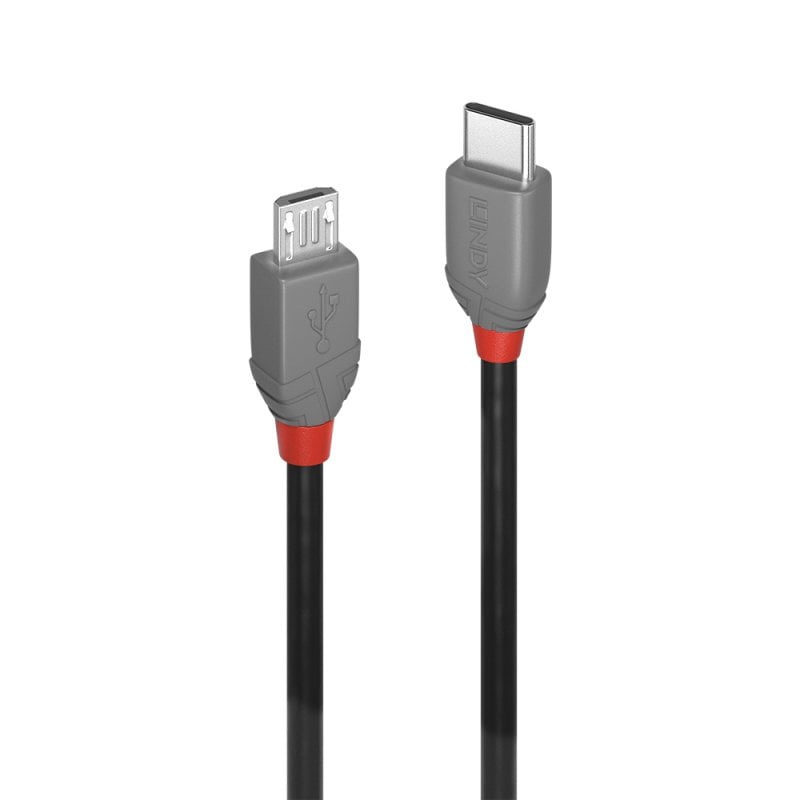

1m USB 2.0 Type C to Micro-B Cable, Anthra Line

Part No: 36891
  • £5.34
120 In Stock Now   |
Loading...

Product Summary

  • Fast and stable file transfers with data speeds up to 480Mbps, perfect for syncing documents, spreadsheets and presentations.
  • Effortlessly connect modern USB-C devices to Micro-B peripherals, such as smartphones, and portable hard drives.
  • Delivers up to 2.5W of power (5V 0.5A) to efficiently power and charge smaller devices.
  • Double-shielded cable and nickel-plated connectors for outstanding performance and reliability; ideal for demanding environments where maintaining signal integrity and long-lasting durability matter most.
  • A 10-year warranty makes this cable ideal for long-term deployments in professional and commercial installations.
The Anthra Line USB 2.0 Type C to Micro-B cables from Lindy are purpose-built for high-performance AV and IT applications. Part of Lindy’s professional-grade Cable Lines range, they combine premium materials with advanced engineering for maximum reliability.

Provide 2.5W (5V 0.5A) of power, ideal for safely charging small devices such as mobile phones, headphones, external drives, game controllers and more.

The robust double-shielded design with tinned copper conductors and gold-plated connectors ensures excellent signal quality and strong resistance to EMI/RFI in challenging environments.

USB 2.0 delivers reliable 480Mbps data transfer speeds, providing the essential performance needed for everyday connectivity. Whether you’re syncing documents, transferring photos, or connecting essential accessories, this standard ensures smooth operation for both professional and personal use.

Connectors

  • Connector A: USB 2.0 Type C Male
  • Connector B: USB 2.0 Micro-B Male
  • Housing Material: PVC
  • Shielding in head shell: Copper foil
  • Connector Plating: Nickel
  • Pin Construction:
    • C: High conductivity copper
    • Micro-B: Brass
  • Pin Plating: Gold
  • Dimensions (approx.) WxDxH:
    • C: 11.0x25.5x7.3mm (0.43x1.00x0.29in)
    • Micro-B: 10.0x24x6.5mm (0.39x0.95x0.26in)

Cable Construction

  • Jacket Diameter: 3.5mm (0.14in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge Power: 28AWG
  • Conductor Gauge Data: 28AWG
  • Shielding: Aluminium Magnesium Braid 82%

Specifications

  • Length: 1m (3.28ft)
  • Colour: Black
  • Type: Round
  • Standard: USB 2.0
  • Supported Bandwidth: 480Mbps
  • Maximum Power: 2.5W (5V 0.5A)
  • E-Mark: No
  • Maximum Resolution: -
  • Supported Protocols: USB 2.0
  • Nominal Attenuation: 0.5-400Mhz < 5.8dB
  • Minimum Bend Radius: 25mm (0.98in)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: 0°C - 70°C (32°F - 158°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Product Compliance: RoHS, REACH, California Proposition 65 & UL (raw cable only)

Purchasing Information

  • No. 36891
  • EAN: 4002888368919

This product is also available in other lengths

  • 36890 - 0.5m (1.64ft)
  • 36891 - 1m (3.28ft)
  • 36892 - 2m (6.56ft)
  • 36893 - 3m (9.84ft)
