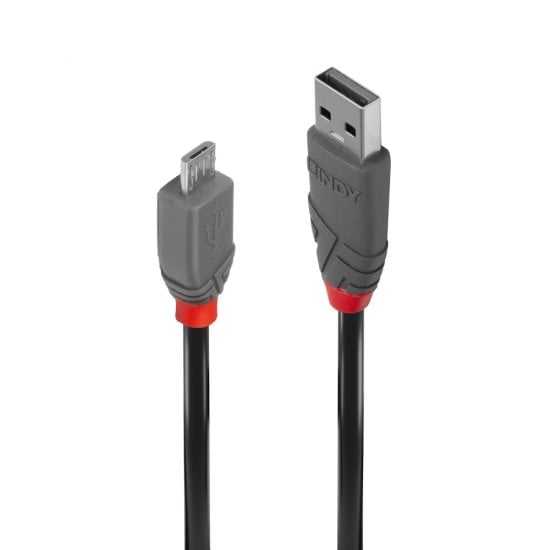

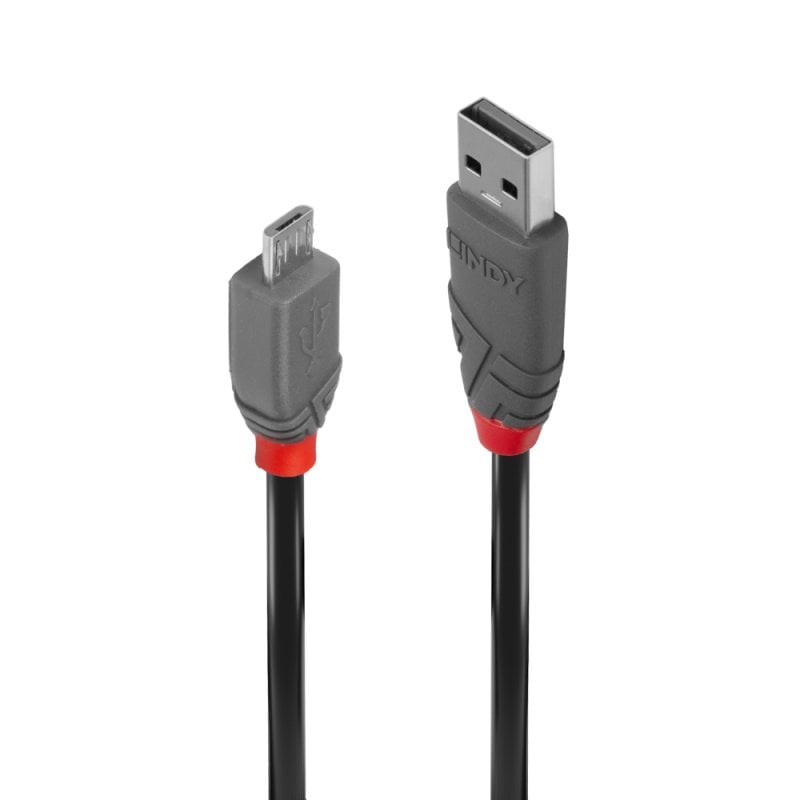

3m USB 2.0 Type A to Micro-B Cable, Anthra Line

From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to Micro-B cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel connectors maintain signal integrity and reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

Anthra Line USB 2.0 Type A to Micro-B cables are available in lengths from 0.2m to 5m.

Connectors:

• Connector A: USB 2.0 Type A Male
• Connector B: USB 2.0 Type Micro-B Male
• Housing Material: PVC
• Connector Plating: Nickel
• Pin Construction: Copper
• Pin Plating: 24K Gold
• Dimensions, USB A (approx.) WxDxH: 15.5x35x7.8mm (0.61x1.38x0.31in)
• Dimensions, USB Micro-B (approx.) WxDxH: 10x24x7.6mm (0.29x0.95x0.30in)

Cable Construction:

• Length: 3m (9.84ft)
• Standard: USB 2.0
• Colour: Black
• Type: Round
• Jacket Diameter: 3.5mm (0.14in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 28AWG
• Shielding: Aluminium Magnesium Braid

Specifications:

• Supported Bandwidth: 480Mbps
• Maximum Resolution: -
• Nominal Attenuation: 5.8db/km
• Minimum Bend Radius: 16mm (0.63in)
• Operating Temperature: 0°C - 60°C (32°F - 140°F)
• Storage Temperature: 0°C - 60°C (32°F - 140°F)

Miscellaneous:

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH, UL (raw cable only)

Purchasing Information:

• No. 36734
• EAN: 4002888367349

This product is also available in other lengths:

• 36730 – 0.2m (0.66ft)
• 36731 - 0.5m (1.64ft)
• 36732 - 1m (3.28ft)
• 36733 - 2m (6.56ft)
• 36734 - 3m (9.84ft)
• 36735 - 5m (16.40ft)
