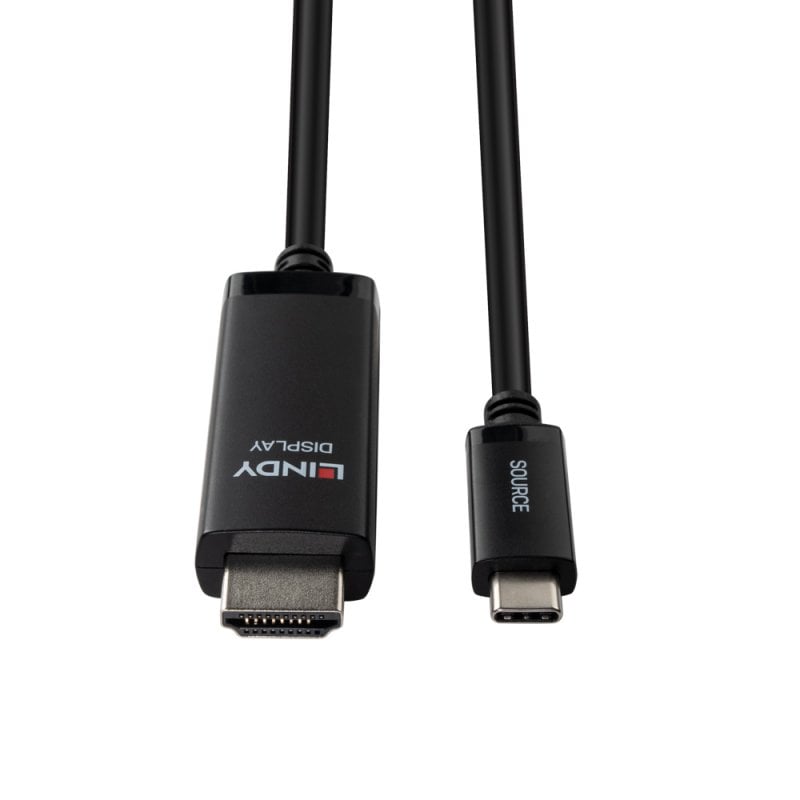

3m USB Type C to HDMI 8K60 Adapter Cable

This Lindy USB Type C to HDMI® 8K60 Adapter Cable is a high performance solution, which allows users to easily add external video capabilities to a computer featuring the USB Type C port with additional support for DisplayPort 1.4 Alternate Mode. The HDMI® connector of the adapter cable can be directly connected to the HDMI® display - while the 3m cable allows for a more flexible positioning of the HDMI® display than when using a box converter - perfect for a simple and adaptable installation.

This cable supports resolutions up to 8K 7680x4320 60 Hz an 4K 144Hz** making it the ideal tool for 8K game streaming or high resolution 8K video editing. Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, superior contrasts and a much wider colour gamut, for more lifelike colour. HDCP 2.2 ensures issue-free playback of 8K Ultra HD movies and other 8K content.

This cable is powered by the USB Bus, therefore no external power supply is needed and with ‘Plug and Play’ installation, this converter cable can be installed into an AV ecosystem with minimum difficulty, ideal for both professional and first time users.

*Please make sure your 8K TV settings are properly configured to HDMI® 2.1 input.

**Please make sure that the source device supports DP 1.4 with DSC v1.2a

Connectors

• Connector A: USB Type C male
• Connector B: HDMI® Type A male
• Housing Material: Plastic Shell
• Connector Plating: Nickel plating
• Pin Construction: Copper alloy
• Pin Plating: Gold plating
• Dimensions (approx.) WxDxH: mm (in)
• USB C: 39.6x12x6.5mm (1.56x0.47x0.26in)
• HDMI®: 71x21x11mm (2.80x0.83x0.43in)

Cable Construction

• Length: 3m (9.84ft)
• Standard: HDMI® 2.1 with 48Gbps
• Colour: Black
• Type: Round
• Jacket Diameter: 4.8mm (0.19in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 32AWG
• Shielding: Tinplate

Specifications

• Chipset: CS5565AN
• Supported Bandwidth: 48Gbps
• Maximum Resolution: 7680x4320 60Hz, 3840x2160 144Hz
• Nominal Attenuation: 100MHz-10GHz â‰¤ 24dB
• Minimum Bend Radius: 28.8mm (1.13in)
• Operating Temperature: -20°C - 40°C (-4°F - 104°F)
• Storage Temperature: -40°C - 80°C (-40°F - 176°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS, REACH, UL (Raw Cable) & California Proposition 65

Purchasing Information

• No.: 43435
• EAN: 4002888434355

This product is also available in other lengths

• 43433 - 1m (3.28ft)
• 43434 - 2m (6.56ft)
• 43436 - 5m (16.40ft)

• UKCA DoC 43433 - 43436
