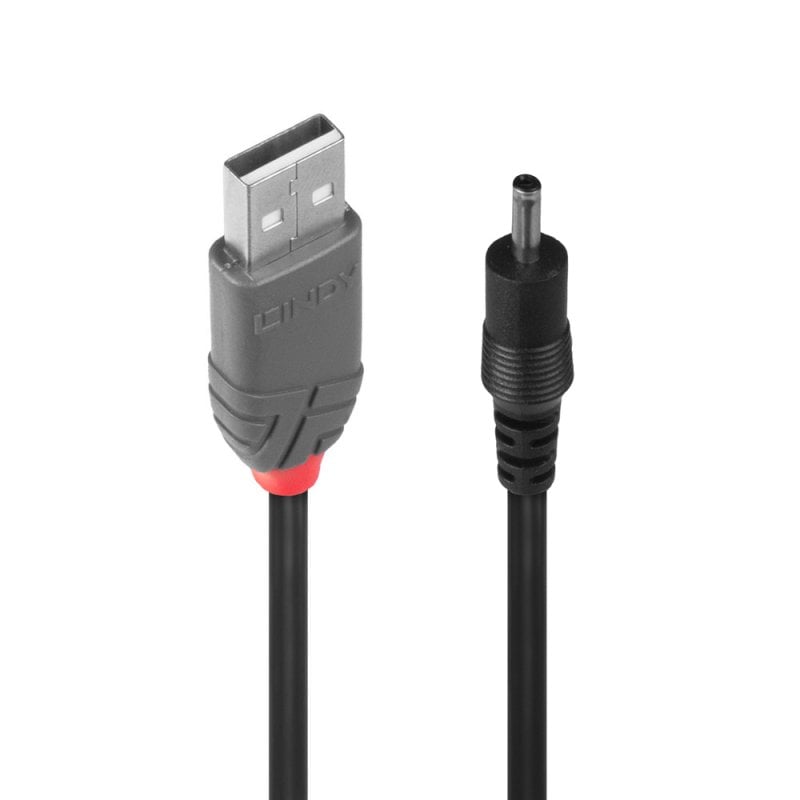

USB 2.0 Type A to 3.5mm DC Cable, 1.5m

Part No: 70266
  • £2.46
2742 In Stock Now   |
Loading...

Product Summary

  • USB 2.0 Type A Male to DC Male (3.5mm outer diameter/1.35mm inner diameter) cable to power external drives or peripherals
  • Connect devices with DC port to a laptop, computer, or charger
  • Robust PVC housing, gold-flashed contacts and nickel-plated connectors
  • USB 2.0, compatible with many devices featuring a 3.5/1.35mm DC port
  • 10 year warranty


The Lindy USB Power Cable allows you to power 5V DC devices from a single USB port (max. 0.9A/5V). It is perfect for mobile applications, eliminating the need to carry bulky PSUs when travelling.

USB Type A to DC cables are available with the following DC connector sizes:
2.5/0.7mm
3.5/1.35mm
5.5/2.5mm
5.5/2.1mm

Connectors

  • Connector A: USB 2.0 Type A Male
  • Connector B: DC Male 3.5/1.35mm
  • Housing Material: PVC
  • Shielding in head shell: Copper foil
  • Connector Plating: Nickel
  • Pin Construction: Copper
  • Pin Plating: Gold
  • Dimensions (approx.) WxDxH:
    • A: 15.6x35x7.9mm (0.61x1.38x0.31in)
    • DC: 3.5/1.35mm (0.14/0.05in)

Cable Construction

  • Length: 1.5m (0.06in)
  • Standard: USB 2.0
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 3mm (0.12in)
  • Jacket Material: PVC
  • Conductor Material: Copper
  • Conductor Gauge Power: 22 AWG
  • Shielding: -

Specifications

  • Max. Supported Power: 0.9A/5V
  • Minimum Bend Radius: 35mm (1.38in)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: 0°C - 70°C (32°F - 158°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Product Compliance: RoHS, REACH & California Proposition 65

Purchasing Information

  • No.: 70266
  • EAN: 4002888702669
