USB 3.2 Type C to C 90° Adapter

Part No: 41894
  • £4.93
61 In Stock Now   |
Loading...

Product Summary

  • Connects a USB Type C cable to a USB Type C device with recessed ports or within limited spaces
  • Angled 90° left/right - can be used as a strain relief for chargers and USB-C converters
  • Robust PVC housing, nickel connectors and gold plated contacts
  • Supports data transfer speeds up to SuperSpeed USB 20Gbps  (USB 3.2 Gen 2x2)
  • 10 year warranty


USB adapters allow users to connect different USB interfaces to a device that uses a differing USB port.

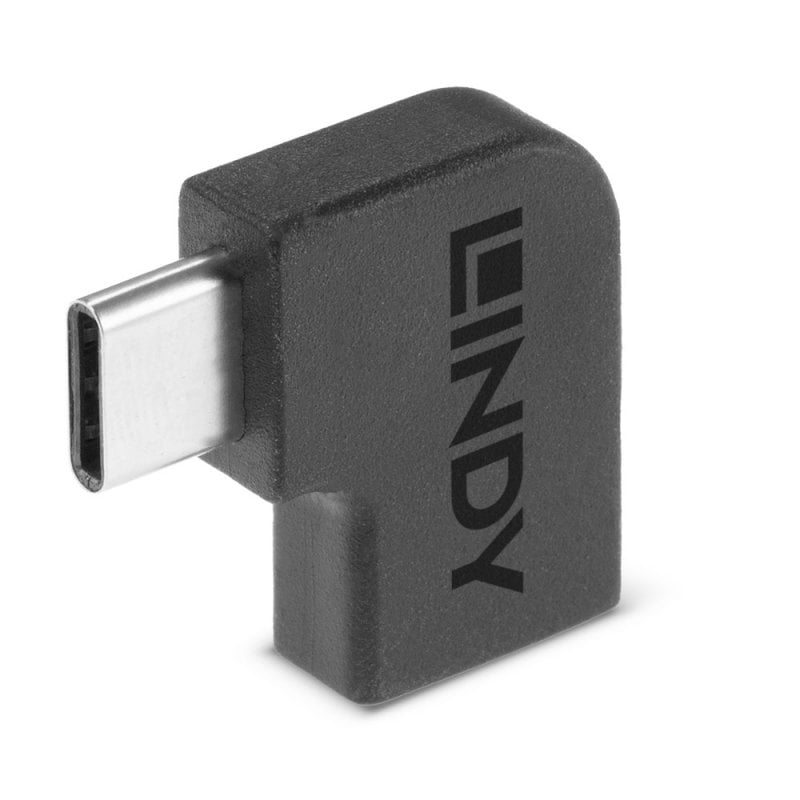

The Lindy USB 3.2 Type C to C 90° Adapter is a compact solution that allows users to connect a USB Type C cable to a USB Type C device with recessed or hard to reach ports. This adapter allows for a 90° connection to the left or right of the device. It is ideal to use as a strain relief for chargers and USB-C converters.

Data transfer speeds up to 20Gbps are supported for the quick and effortless transfer of large data volumes.



Connectors

  • Connector A: USB 3.2 Type C Male
  • Connector B: USB 3.2 Type C Female
  • Housing Material: PVC
  • Connector Plating: Nickel
  • Pin Construction: Copper
  • Pin Plating: Gold
  • Dimensions (approx.) WxDxH: 24.6x23x6.3mm (0.97x0.91x0.25in)

Specifications

  • Standard: USB 3.2 Gen 2x2
  • Supported Bandwidth: 20Gbps
  • Colour: Black
  • Shielding: Copper foil
  • Operating Temperature: -10°C - 80°C (14°F - 176°F)
  • Storage Temperature: -20°C - 85°C (-4°F - 185°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHs, REACH, California Proposition 65

Purchasing information

  • No.: 41894
  • EAN: 4002888418942
