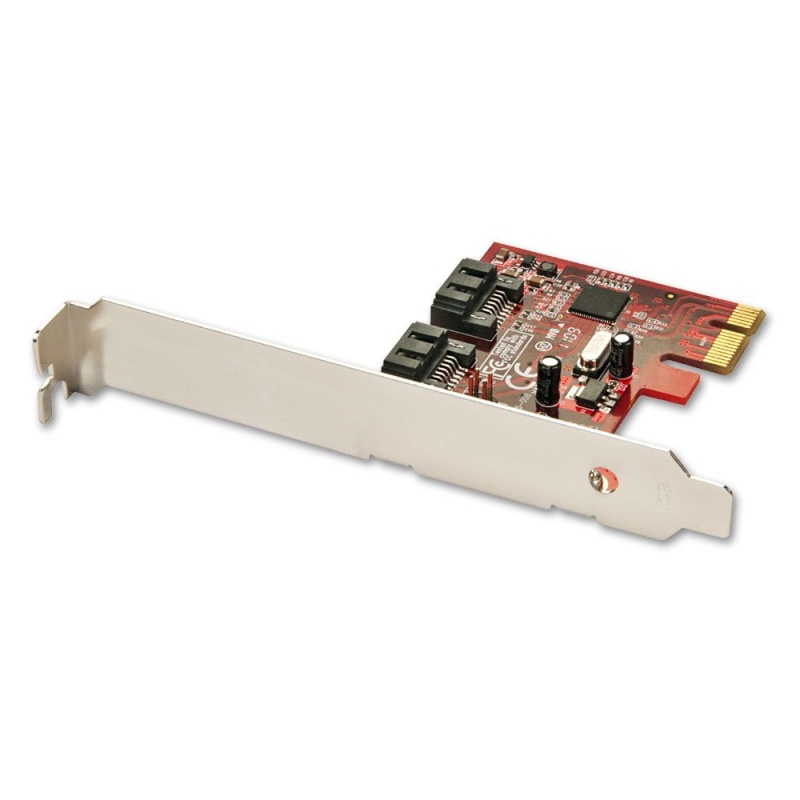

2 Port SATA Hybrid Drive / HyperDuo Card, PCIe

Part No: 51403
  • £42.98
Item out of Stock   |
Loading...

Product Summary

  • PCI Express card with 2 x 6Gbit/sec SATA ports
  • Bus Type: PCI Express (PCIe 2.0 x1)
  • SATA 6Gbit/sec Compliant
  • PCI Express 2.0
  • 2 x Internal SATA 6Gbps Port
  • Fully compliant with Serial ATA specification 3.0
  • Supports ATA and ATAPI commands
  • Supports FIS-based switching with Port Multipliers
  • Compatible with drivers for 64bit / 32bit Windows 7, 8, 8.1,10, Vista, XP, 2003, 2008


Please Note- The SATA 6Gbps ports are not compatible with the SATA 1.0a cables

The Lindy 2 port SATA 6Gbps PCIe card with HyperDuo support helps you to combine the speed of a SSD with the capacity of a HDD.

HyperDuo enables two modes: Safe Mode and Capacity Mode. Safe Mode provides optimal data protection by mirroring data from the SSD to the hard disk for maximum resiliency. Capacity Mode augments SSD and HDD capacity for the most cost-effective configuration.

  • Two Hybrid Drive modes: Safe (Mirror), Capacity (Cost-Optimized)
  • Supports Port Multiplier feature and NCQ (Native Command Queuing)
  • Supports SATA 6Gbps, 3Gbps & 1.5Gbps
  • Supports HyperDuo
  • Support Hybrid Drives (HDD + SSD), Hardware RAID 0,1 on board
  • Chipset: Marvell 9130
  • Low Profile PCIe Form Factor with 2 slot plates: low & standard
  • SATA Hot-plug capability
  • BIOS on board, supports OS booting
  • Two pin headers on board for LED connection
