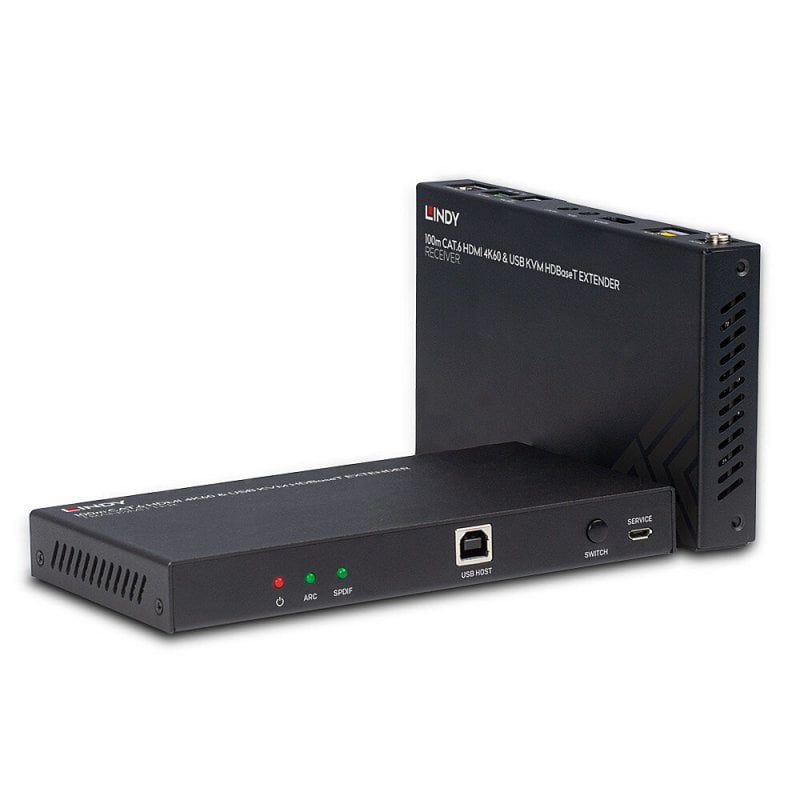

100m Cat.6 HDMI 4K60, Audio, IR & RS-232 HDBaseT KVM Extender

Part No: 38343
  • £991.07
196 In Stock Now   |
Loading...

Product Summary

  • Distributes HDMI® resolutions up to 100m over Cat.6 network cable via HDBaseT technology
  • Supports HDMI® 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR
  • ARC Support as well as USB, RS-232, CEC & Ethernet pass-through & bi-directional IR for simple control
  • Supports PoC (Power over cable), requiring a power supply connection from only one side of the installation
  • 3 year warranty

SECTION 1 - HERO HEADLINE

Extend HDMI® 4K60 and USB Control Up to 100m



The Lindy 100m Cat.6 HDMI® 4K60, Audio, IR & RS-232 HDBaseT® KVM Extender is a complete professional solution for extending HDMI® video, USB control and multiple AV signals over long distances using a single Cat.6 network cable.

SECTION 2 - FEATURE CALLOUT

High-Performance HDMI® and USB KVM Extension

Designed for professional AV installations, this HDBaseT extension system delivers HDMI® 4K60 video, USB control, audio and multiple control signals up to 100m over Cat.6 cable. With Power over Cable, ARC support and extensive control options including IR, RS-232 and Ethernet, it provides a reliable and flexible solution for professional environments.

SECTION 3 - AT A GLANCE

At a Glance

HDMI® extension up to 100m
Transmit AV signals over Cat.6 cable.

4K60 HDR support
High quality Ultra HD video transmission.

USB KVM functionality
Control source devices remotely.

Power over Cable
Single power supply for simplified installation.

SECTION 4 - KEY BENEFITS

Key Benefits

High-quality 4K60 HDMI® transmission
Supports HDMI® 2.0 bandwidth up to 18Gbps and resolutions up to 3840x2160@60Hz with HDR support, delivering clear and vibrant video for professional AV installations.

Flexible audio connectivity
ARC support allows audio to return from the display to an amplifier or soundbar, while optical and analogue outputs enable external audio systems for immersive sound.

Reliable HDBaseT signal distribution
Extend HDMI®, USB and control signals up to 100m over Cat.6 cable, providing a dependable long-distance AV solution.

USB KVM remote control
Integrated USB ports allow a keyboard, mouse and other peripherals to control the connected source device remotely from the display location.

Comprehensive control integration
Bi-directional IR, RS-232, Ethernet and CEC pass-through enable integration with advanced control systems and allow full remote operation.

Simplified installation with PoC
Power over Cable allows both units to be powered from a single power supply connected to the transmitter.



SECTION 5 - TYPICAL APPLICATIONS

Typical Applications

Ideal for digital signage installations, conference rooms, lecture halls, event displays and professional AV environments, this extender allows high-quality video distribution and remote device control across long distances.



SECTION 6 - TECHNICAL SUMMARY

Technical Summary

The Lindy 100m Cat.6 HDMI® 4K60, Audio, IR & RS-232 HDBaseT KVM Extender supports HDMI® 2.0 with bandwidth up to 18Gbps and resolutions up to 3840x2160@60Hz. Depending on resolution, signals can be transmitted up to 100m using high quality Cat.6 cable.

The system provides HDMI®, USB 2.0, IR, RS-232, Ethernet and CEC pass-through, allowing full integration into professional AV control systems. Optical and analogue audio ports support external audio devices, while ARC functionality enables audio return from the display to connected audio equipment.

With durable metal housings, mounting brackets and Power over Cable support, the extender offers reliable performance for professional installations. It operates via a 24VDC power supply and is backed by a 3-year warranty.

Specifications

  • AV Interface: HDMI®
  • Interface Standard: 2.0, USB 2.0
  • Supported Bandwidth: 18Gbps
  • Maximum Distance:
    70m (229.66ft) - 3840x2160@60Hz 4:4:4 8bit
    100m (328.08ft) - 1920x1080@60Hz
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: 2.2
  • EDID Pass Through: Pass-through
  • Supported Audio: HDMI® Audio Pass-through, TosLink (Optical) Up to 5.1Ch, 3.5mm Up to 2.0Ch
  • Separate Audio Ports: TosLink (Optical), 3.5mm
  • IR Support: 20-60kHz
  • CEC Support: Pass-through
  • Serial Interface: RS-232
  • Transmission Protocol: HDBaseT
  • Transmission Medium: Cat.6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: VS2310TX-A1
  • Special Features:
    HDMI® Loop Out Port
    PoC (Power over Cable)
    ARC Support

Connectors

  • Transmitter Input: HDMI® Type A (Female), USB Type B (Female), 3.5mm IR (Female)
  • Transmitter Output: RJ-45 (Female), TosLink (Optical) (Female), 3.5mm Audio (Female), 3.5mm IR (Female)
  • Receiver Input: RJ-45 (Female), Toslink (Optical) (Female), 3.5mm IR (Female)
  • Receiver Output: HDMI® Type A (Female), 2 x USB Type A (Female), 3.5mm IR (Female)
  • Bi-directional Ports: RS-232 3-Pin Terminal Block, RJ-45 Ethernet (Female)
  • Power: 5.5/2.1mm

Physical Properties

  • Dimensions (approx.) WxDxH: 165x88x20mm (6.5x3.46x0.79in) per unit
  • Housing Material: Metal
  • Net Weight: 0.73kg (1.61lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Power Requirements: 24VDC 1A
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 265x70x210mm (10.43x2.76x8.27in)
  • Gross Weight: 1.29kg (2.84lb)
  • Warranty (Years): 3
  • Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

  • HDBaseT HDMI® KVM Extender, Transmitter
  • HDBaseT HDMI® KVM Extender, Receiver
  • IR Emitter Cable, 1.5m
  • IR Receiver Cable, 1.5m
  • 4 x Mounting Ears & 8 x Screws
  • 2 x 3-Pin Terminal Block
  • Multi-country Power Supply (UK, EU, US & AUS)
  • Lindy Manual

Purchasing Information

  • No.: 38343
  • EAN: 4002888383431
