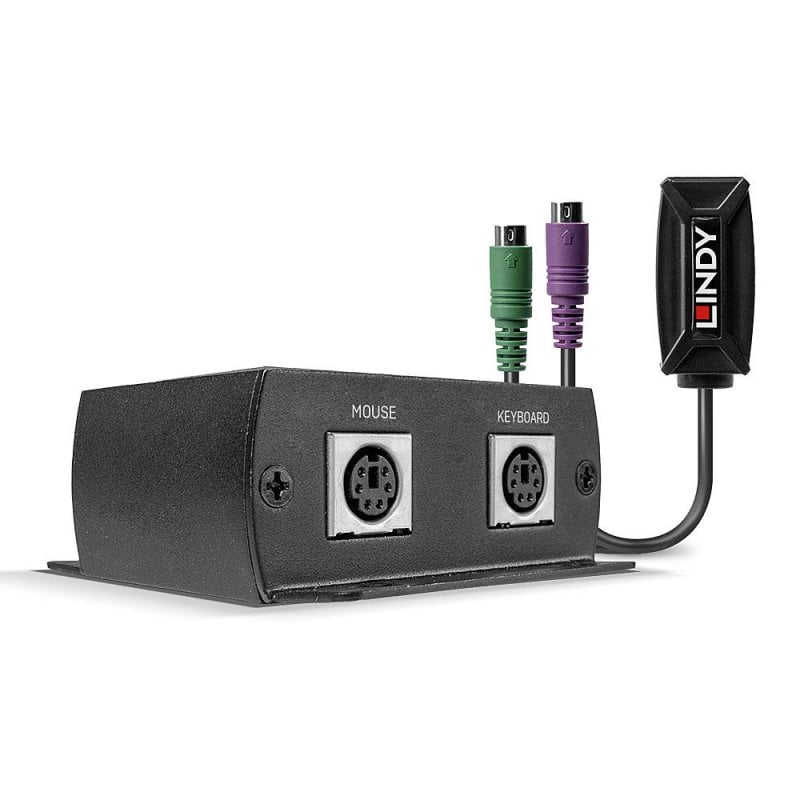

100m PS/2 KM Cat.5e/6 Extender

The Lindy 100m Cat.5e/6 PS/2 KM Extender is capable of transmitting standard PS/2 keyboard and mouse signals up to 100m (328.08ft). This device is ideal for local collaboration and presentations in classrooms or meeting rooms.

This Extender is a two part hardware solution comprising a transmitter that connects directly to a computer and a receiver for connection to keyboard and mouse in a convenient location. These units are connected by a single low-cost Cat.5e/6 UTP cable (not included). Powered by the PS/2 bus, the transmitter and receiver units can be easily installed in any environment without the need for external power.

Specifications

• Standard: PS/2
• Supported Bandwidth: 1Mbps
• Maximum Distance: 100m (328.08ft)
• Transmission Medium: Cat.5e/6 UTP network cable
• Chipset: -
• Special Features: -

Connectors

• Transmitter Input: 2x PS/2 Male
• Transmitter Output: RJ45 (Female)
• Receiver Input: RJ45 (Female)
• Receiver Output: 2 x PS/2 Female
• Power: -

Physical properties

• Dimensions (approx.) WxDxH:

TX: 67x70x27mm (2.64x2.76x1.06in)

RX: 53x25x20.7mm (2.09x0.98x0.81in)

• Housing Material: ABS & Metal
• Net Weight: TX: 0.11kg (0.24lb), RX: 0.035kg (0.08lb)
• Operating Temperature: 0°C - 55°C (32°F - 131°F)
• Storage Temperature: -20°C - 85°C (-4°F - 185°F)
• Humidity: 0 - 95% RH (non-condensing)
• Power Requirements: -
• Colour: Black (Housing)

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 115x108x39mm (4.53x4.25x1.54in)
• Gross Weight: 0.2kg (0.44lb)
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS & REACH, CP65

Package contents

• Transmitter unit
• Receiver unit
• Lindy Manual

Purchasing information

• No.: 32681
• EAN: 4002888326810

• Product Safety Information
