140m Cat.6 DVI-D, USB, Audio & RS-232 KVM Extender

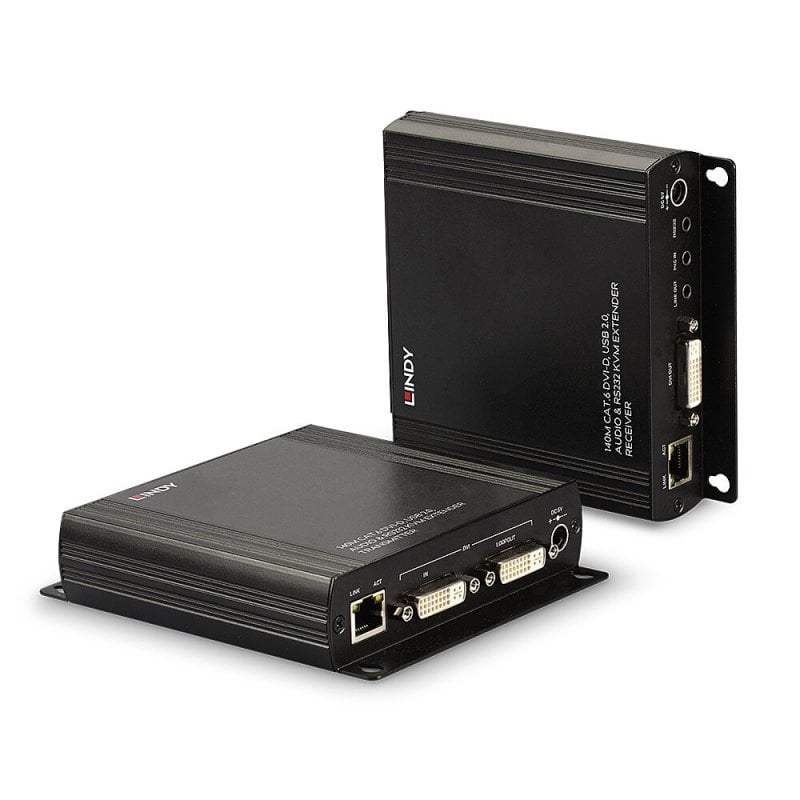

The Lindy Cat.6 DVI-D Single Link, USB, Audio & RS-232 KVM Extender allows users to control a source device such as a PC from a single keyboard, mouse and display up to 140m using a Cat.6 RJ-45 cable. Supports single link resolutions up to 1920x1200 and HDMI signals including Full HD 1080p, 3D and HDCP 1.4. Ideal for KVM applications, the Extender consists of a transmitter and a receiver unit. The transmitter must be connected to a source such as a PC or KVM Switch, while the console with display, keyboard and mouse must be connected to the receiver. It's also possible to connect additional USB 2.0 devices such as storage and hard drives (webcams are not supported).

The extenders built-in EDID function ensures maximum compatibility with the display or projector at the receiver or even at the loop out DVI port on the transmitter, while analogue audio 3.5mm inputs and outputs allow users to connect speakers, microphones and a line-in interface.

RS-232 connections also allow for integration into pre-installed control systems.

This extender provides a simple plug & play installation, with no additional drivers required, great for both professional and first time users. In addition to point-to-point applications, it can be used also via a gigabit network, a rotary switch on both units can pair transmitters with receivers.

Please note: to reach distances longer that 140m, it is possible to add a gigabit network switch or the repeater 42709 inbetween transmitter and receiver (with 42709 the total length supported is up to 280m).

Specifications

• AV Interface: DVI-D
• Console Interface: USB
• Interfaces Standard: DVI-D Single Link, USB 2.0
• Supported Bandwidth: 850Mbps
• Maximum Distance: 140m (459.31ft)
• Maximum Resolution: 1920x1200@60Hz
• HDCP Support: 1.4
• Supported Audio: Analogue Stereo & Mono
• Separate Audio Ports: 2 x 3.5mm (Female)
• Transmission Protocol: -
• Transmission Medium: Cat.6
• Laser Class (only for Fibre): -
• Wavelength (only for Fibre): -
• Special Features: EDID management, point-to-point and LAN connection and RS-232 signal extension

Connectors

• Transmitter KVM Interfaces: DVI-I in (Female), DVI-I loopout (Female), USB Type B (Female), 2 x 3.5mm (Female)
• Transmitter Extension Port: 1x RJ-45 (Female)
• Receiver Console Interface: DVI-I (Female), 4 x USB Type A (Female), 2 x 3.5mm (Female)
• Receiver Extension Port: 1 x RJ-45 (Female)
• Bi-directional Ports: 3.5mm RS-232 (Female)
• Other Interfaces: -
• Power: 5.5/2.5mm DC socket

Physical Properties

• Dimensions (approx.) WxDxH: 125x140x30mm (4.92x5.51x1.18in) (each unit)
• Housing Material: Metal
• Net Weight: 1.27kg (2.8lb)
• Operating Temperature: -20°C - 60°C (-4°F - 140°F)
• Storage Temperature: -20°C - 85°C (-4°F - 185°F)
• Humidity: 0 - 95% RH (non-condensing)
• Power Requirements: 5VDC 2.6A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 355x195x60mm (13.98x7.68x2.36in)
• Gross Weight: 1.52kg (3.35lb)
• Warranty (Years): 3
• Certification: CE, UKCA, FCC, RoHS, REACH, California Proposition 65, TAA

Package Content

• Transmitter unit
• Receiver unit
• 1 x USB Type A/B cable, 1.45m
• 1 x 3.5mm to RS232 DB9 Male cable, 1.80m
• 1 x 3.5mm to RS232 DB9 Female cable, 1.80m
• 2 x Multi-Country Power Supply (EU, UK, US, AUS)
• 8 x Screws and Dowels
• Lindy Manual

Purchasing Information

• No.: 39245
• EAN: 4002888392457
