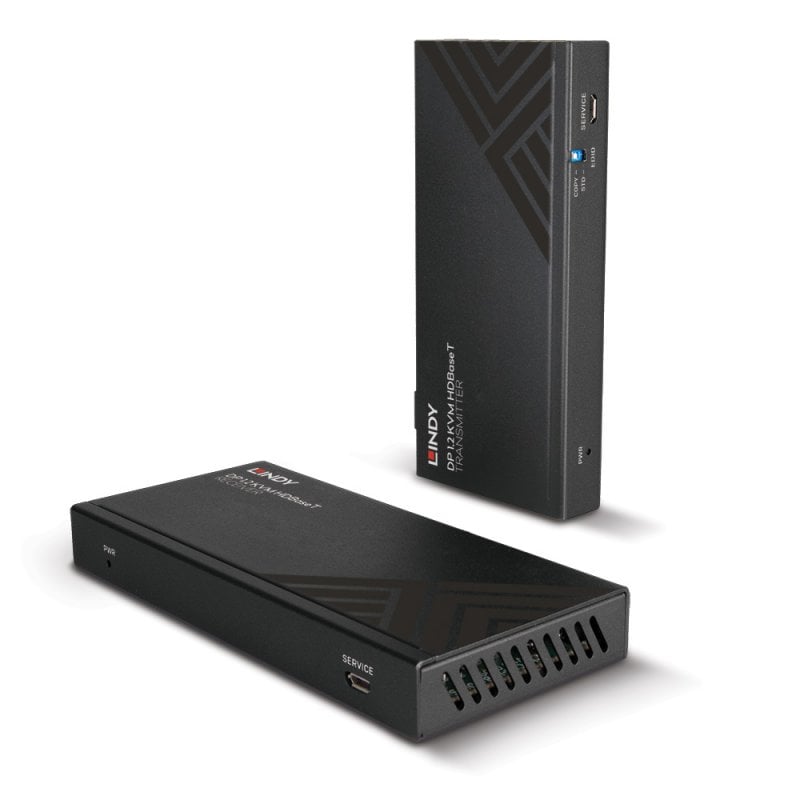

150m Cat.6 DisplayPort 1.2, USB, IR & RS-232 HDBaseT KVM Extender

Part No: 39385
  • £612.26
88 In Stock Now   |
Loading...

Product Summary

  • Extends DisplayPort 1.2 video, USB keyboard and mouse control, bi-directional IR, RS-232 and power up to 150m over a single Cat.6 cable, simplifying professional AV and KVM installations
  • Supports resolutions up to 4K Ultra HD 3840x2160@60Hz 4:4:4 with HDCP 2.2, delivering exceptional image quality for digital signage, conference rooms and control environments
  • Integrated USB HID support enables seamless remote keyboard and mouse control, allowing source equipment to be securely located away from the operator without compromising usability
  • Power over Cable (PoC), bi-directional IR, RS-232 pass-through and EDID management provide flexible system integration while reducing cabling complexity and installation time
  • Professional metal construction supplied with mounting hardware and installation accessories, backed by a 3 year warranty for dependable long-term operation

SECTION 1 - HERO HEADLINE

150m Cat.6 DisplayPort 1.2, USB, IR & RS-232 HDBaseT KVM Extender



The Lindy Cat.6 DisplayPort 1.2 HDBaseT KVM Extender delivers high-quality DisplayPort video, USB keyboard and mouse control, IR, RS-232 and power over a single Cat.6 cable, providing a reliable solution for extending 4K AV and control signals across professional installations.

SECTION 2 - FEATURE CALLOUT

Video, USB, Control and Power Over a Single Cat.6 Cable

Using proven HDBaseT technology, the extender transmits DisplayPort video together with USB keyboard and mouse control, bi-directional IR, RS-232 and Power over Cable through a single Cat.6 connection. This simplifies installation, reduces cable complexity and provides a clean, dependable solution for professional AV, control room and digital signage applications.

SECTION 3 - AT A GLANCE

At a Glance

4K DisplayPort extension
Supports up to 4K@60Hz over distances up to 100m.

KVM functionality
Remote USB keyboard and mouse control via HDBaseT.

Bi-directional control
IR and RS-232 support for flexible device management.

Power over Cable
Only one power supply required for the complete system.

SECTION 4 - KEY BENEFITS

Key Benefits

Extend DisplayPort over long distances
Transmit DisplayPort signals up to 150m over a single Cat.6 cable, supporting Full HD at 150m and Ultra HD 4K@60Hz over distances up to 100m without the limitations of conventional DisplayPort cabling.

Complete remote workstation control
Integrated USB HID support allows a keyboard and mouse connected at the receiver to control the source computer remotely, making the extender ideal for secure equipment rooms, control centres and professional AV installations.

One cable carries everything
HDBaseT technology transports video, USB, IR, RS-232 and power through a single Cat.6 cable, simplifying installation while reducing cable costs and infrastructure complexity.

Flexible AV and control integration
Bi-directional IR and RS-232 pass-through allow remote control of source and display devices while supporting integration with third-party control systems for professional AV environments.

Power where it's needed
Power over Cable (PoC) enables both transmitter and receiver to operate from a single power supply, simplifying installation where mains power is limited and reducing visible cabling.

Optimised for reliable installation
The integrated EDID management system helps ensure maximum compatibility with connected displays and projectors, while the robust metal housing is designed for dependable long-term operation in professional environments.



SECTION 5 - TYPICAL APPLICATIONS

Typical Applications

The Cat.6 DisplayPort HDBaseT KVM Extender is ideal for digital signage, control rooms, security monitoring, broadcast facilities, conference rooms, lecture theatres and industrial environments where high-quality video, USB control and device management must be extended over long distances. Its combination of KVM functionality, IR, RS-232 and Power over Cable also makes it well suited to integrated AV systems requiring reliable centralised control.



SECTION 6 - TECHNICAL SUMMARY

Technical Summary

The extender supports DisplayPort 1.2 with bandwidths up to 21.6Gbps and resolutions up to 3840x2160@60Hz 4:4:4 8-bit at distances up to 100m, or Full HD 1920x1080@60Hz up to 150m using high-quality Cat.6 solid core cable. HDCP 2.2 compliance, EDID management and support for lossless audio formats including Dolby TrueHD and DTS-HD ensure excellent compatibility across professional AV installations.

Integrated USB HID support enables remote keyboard and mouse operation, while bi-directional IR, RS-232 pass-through and Power over Cable provide flexible system control and simplified installation using a single Cat.6 cable between the transmitter and receiver.

The extender features robust metal transmitter and receiver units and is supplied with USB, IR and RS-232 accessories, mounting hardware and a multi-country power supply. It is backed by a 3-year warranty.

HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

Specifications

  • AV Interface: DisplayPort
  • Interface Standard: DisplayPort 1.2, USB 1.1
  • Supported Bandwidth: 21.6Gbps
  • Maximum Distance: 150m (492.12ft)
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: 2.2
  • EDID Pass Through: Dip Switch with copy function
  • Supported Audio: Pass Through
  • Separate Audio Ports: -
  • IR Support: 20 - 60KHz
  • CEC Support: -
  • Serial Interface: RS-232 Pass Through
  • Transmission Protocol: HDBaseT
  • Transmission Medium: Cat.6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: VS010-A0
  • Special Features: Bi-directional IR, RS-232 and PoC

Connectors

  • Transmitter Input: DP (Female), USB Type B (Female), 3.5mm IR (Female)
  • Transmitter Output: RJ-45 (Female), 3.5mm IR (Female)
  • Receiver Input: RJ-45 (Female), 3.5mm IR (Female)
  • Receiver Output: DP (Female), 2x USB Type A (Female), 3.5mm IR (Female)
  • Bi-directional Ports: RS-232 3-Pin Terminal Block
  • Power: 5.5/2.1mm

Physical Properties

  • Dimensions (approx.) WxDxH: 140x65x18mm (5.51x2.56x0.71in) each unit
  • Housing Material: Metal
  • Net Weight: 0.8kg (1.76lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Power Requirements: 24VDC 1A
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 245x75x185mm (9.65x2.95x7.28in)
  • Gross Weight: 1.02kg (2.25lb)
  • Warranty (Years): 3
  • Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

  • HDBaseT DP KVM Extender, Transmitter
  • HDBaseT DP KVM Extender, Receiver
  • USB 2.0 Type A to Type B cable, 1.5m
  • IR Emitter Cable, 1.5m
  • IR Receiver Cable, 1.5m
  • 4 x Mounting Ears & 8 x Screws
  • 2 x 3-Pin Terminal Block
  • Multi-country Power Supply (UK, EU, US & AUS)
  • Lindy Manual

Purchasing Information

  • No.: 39385
  • EAN: 4002888393850
