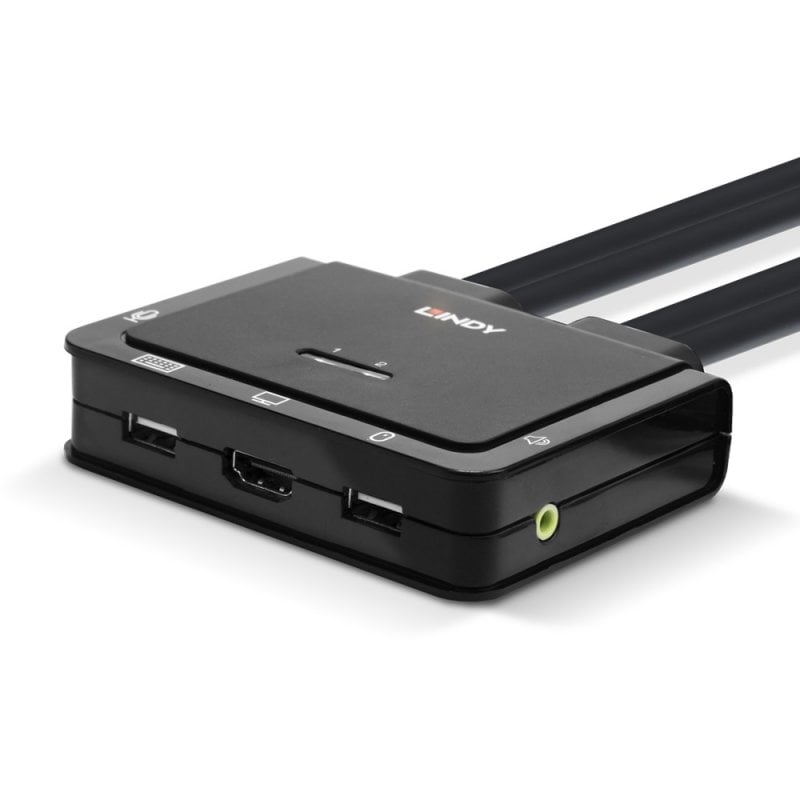

2 Port HDMI 18G, USB Type C, USB 2.0 & Audio Cable KVM Switch

The Lindy 2 Port HDMI® 18G, USB Type C, USB 2.0 & Audio KVM Switch is a compact solution for providing access and control over a HDMI® equipped PC and Type C laptop or Desktop OS tablets from a single keyboard, mouse and monitor. With integrated cables, this switch can be easily connected directly to the system, with no need to purchase additional cables and to save time during installation.

Support for resolutions up to 3840x2160@60Hz ensures high image quality, perfect for demanding graphical content in gaming setups, video editing or dual system control workstations. The integrated USB Type C cable allows for control of a variety of laptops and tablets alongside a PC, great for maximising workspaces in universities or residential offices. The audio output port on the main unit also allows users to connect headphones or speakers to add immersive 2-channel audio and a microphone, while additional USB peripherals can be integrated with a USB hub.

The KVM switch features multiple switching options including a push button control (with 1.5m cable), hotkey and software switching to provide simple, reliable control for the user, great for both professional and first-time users.

Specifications

• AV Interface: HDMI®, USB Type C
• Console Interfaces: USB
• Interface Standard: HDMI® 18G, USB 2.0
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: HDCP 1.4
• Supported Audio: Analogue Stereo
• Separate Audio Ports: 2 x 3.5mm (Female)
• Serial Interface: -
• Console Number: 1
• Max Number PC/Server: 2
• Cascadable: -
• Switching Method: Push Button, Hotkey Switching & Software
• 19" Rack Mountable: -
• Special Features: Supports USB 2.0 Hubs and Device Sharing, Active LED Indicators

Connectors

• Console Interfaces: HDMI® (Female), USB 2.0 Type A (Female), 2 x 3.5mm (Female)
• PC/Server Interfaces: HDMI® (Male), USB Type C (Male), USB 2.0 Type A (Male), 2 x 3.5mm (Male) 1.2m Integrated Cables
• Other Interfaces: -
• Power : Bus-Powered

Physical Properties

• Dimensions (approx.) WxDxH: 97x25x82.18mm (3.82x0.98x3.24in)
• Housing Material: Plastic
• Net Weight : 0.433kg (0.95lb)
• Operating Temperature: 0°C - 55°C (32°F - 131°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Humidity: 0 - 90% RH (non-condensing)
• Power Requirements: 5V
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 160x60x250mm (6.3x2.36x9.84in)
• Gross Weight: 0.514kg (1.13lb)
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

• HDMI®/USB Type C KVM switch
• Lindy Manual

Purchasing Information

• No.: 42347
• EAN: 4002888423472

• Product Safety Information
