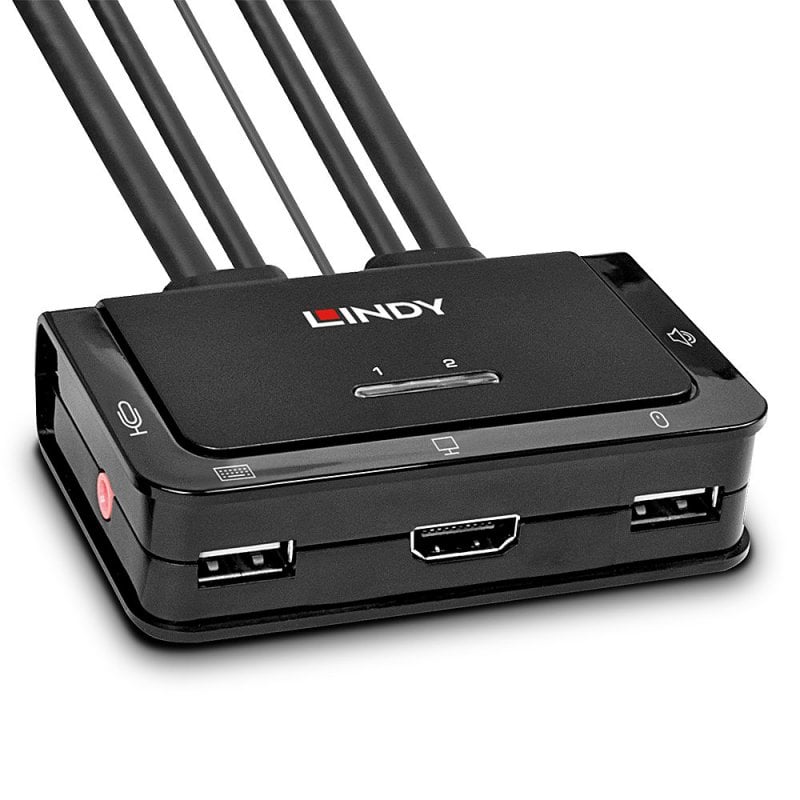

2 Port HDMI 4K30, USB 2.0 & Audio Cable KVM Switch

Part No: 42340
  • £101.66
56 In Stock Now   |
Loading...

Product Summary

  • Controls two HDMI® equipped PCs from a single keyboard, mouse and monitor
  • Switch via the unit’s push buttons, software or keyboard hot keys
  • Supports HDMI® 10.2G signals, up to 4K 30Hz with 4:4:4 8bit
  • Integrated cables for quick, hassle-free installation
  • 2 year warranty
A KVM switch allows an operator to conveniently control and manage multiple devices, such as PCs and servers, from a single keyboard, mouse and display console.

The Lindy 2 Port HDMI® 10.2G, USB 2.0 & Audio KVM Switch is a compact solution for providing access and control over two HDMI® equipped PCs from a single keyboard, mouse and monitor set. With integrated cables, this switch can be easily connected directly to the system, with no need to purchase additional cables, saving time and money on installation.

Support for resolutions up to 4096x2160@60Hz 4:2:0 8bit, perfect also for graphical content in gaming setups, home working or dual system control workstations. The audio output port also allow users to connect headphones or speaker to add immersive 2CH audio and a microphone, while additional USB peripherals can be integrated with a USB hub.

The KVM switch features multiple switching options including push buttons on the unit alongside hotkey and software switching to provide simple, reliable control for the user, great for both professional and first time users.

Specifications

  • AV Interface: HDMI®
  • Console Interfaces: USB
  • Interface Standard: HDMI® 1.4, USB 2.0
  • Maximum Resolution: 4096x2160@60Hz 4:2:0 8bit
  • HDCP Support: HDCP 2.2
  • Supported Audio: Analogue Stereo
  • Separate Audio Ports: 2 x 3.5mm (Female)
  • Serial Interface: -
  • Console Number: 1
  • Max Number PC/Server: 2
  • Cascadable: -
  • Switching Method: Push Button, Hotkey Switching & Software
  • 19" Rack Mountable: -
  • Special Features: Active LED Indicators

Connectors

  • Console Interfaces: HDMI® Type A (Female), 2 x USB 2.0 Type A (Female), 2 x 3.5mm (Female)
  • PC/Server Interfaces: 2 x HDMI® (Male), USB 2.0 Type A (Male), 2 x 3.5mm (Male) 1.2m Integrated Cables
  • Other Interfaces: -
  • Power: -

Physical Properties

  • Dimensions (approx.) WxDxH: 87x25x58.78mm (3.43x0.98x2.31in), cables length 0.9m (2.95ft)
  • Housing Material: Plastic
  • Net Weight: 0.46kg (1.01lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 0 - 90% RH (non-condensing)
  • Power Requirements: Via USB
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 160x60x210mm (6.3x2.36x8.27in)
  • Gross Weight: 0.6kg (1.32lb)
  • Warranty (Years): 2
  • Certified: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

  • HDMI® KVM Switch
  • Lindy Manual

Purchasing Information

  • No.: 42340
  • EAN: 4002888423403
