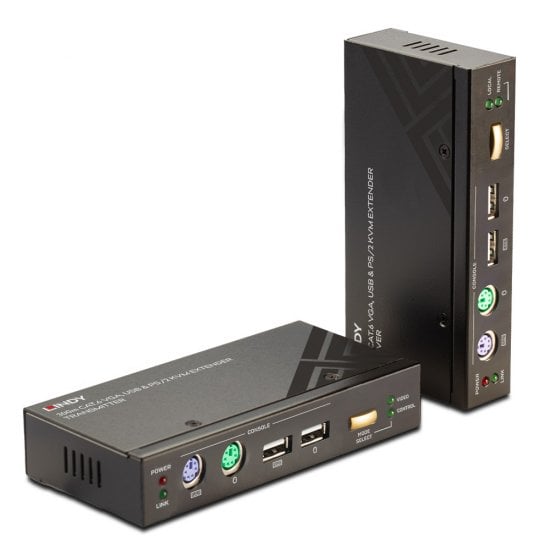

300m CAT5 KVM Extender Combo, USB & VGA

Part No: 39378
  • £428.71
3 In Stock Now   |
Loading...

Product Summary

  • Extends VGA video together with USB or PS/2 keyboard and mouse control up to 300m over a single Cat.5e/6 cable, providing reliable long-distance access to computers and KVM switches
  • Integrated KVM switching allows the remote console to switch between the extended computer and a second locally connected PC, making it ideal for control rooms, production environments and multi-system workstations
  • Supports analogue VGA resolutions up to 1920x1200@60Hz with local and remote console operation, enabling convenient access from either location without compromising control
  • Simple plug-and-play installation with no software required, plus an integrated OSD for video adjustment, EDID management, password protection and configurable hotkeys
  • Professional metal construction supplied with KVM cables, USB to PS/2 adapters and multi-country power supplies, backed by a 2 year warranty

SECTION 1 - HERO HEADLINE

300m KVM Extension with Integrated Dual-PC Switching



The Lindy Cat.6 VGA, USB & PS/2 KVM Extender allows users to control a computer from up to 300m away over a single Cat.5e/6 cable, while its integrated KVM switching capability enables the remote console to switch between the extended computer and a second locally connected PC.

SECTION 2 - FEATURE CALLOUT

Extend One Computer, Control Two from a Single Workstation

Unlike a conventional KVM extender, the receiver includes connections for a second local computer, allowing users to switch between the extended PC and a locally connected workstation using the front panel button or configurable hotkeys. This makes it an ideal solution for control rooms, production environments and professional installations where multiple systems need to be managed from a single operator position.

SECTION 3 - AT A GLANCE

At a Glance

300m KVM extension
Control a remote computer over a single Cat.5e/6 cable.

Integrated KVM switching
Switch between the extended PC and a second local computer.

USB and PS/2 support
Compatible with both modern and legacy peripherals.

OSD configuration
Manage EDID, hotkeys, passwords and video settings with ease.

SECTION 4 - KEY BENEFITS

Key Benefits

Remote control over long distances
Operate a computer from up to 300m away using a single Cat.5e/6 cable, making it ideal where equipment must be located away from the operator.

Manage two computers from one remote console
The integrated KVM switch allows the remote operator to instantly change between the extended computer and a second locally connected PC, improving workflow and reducing desktop clutter.

Local and remote console operation
Both transmitter and receiver support keyboard, mouse and display connections, allowing convenient access from either location without compromising control.

Simple installation with no software required
Plug-and-play operation means the extender can be deployed quickly without drivers or additional software, reducing installation time and complexity.

Flexible system configuration
The integrated on-screen display provides convenient access to video adjustment, EDID management, password protection and configurable hotkeys for straightforward system setup.

Supports modern and legacy peripherals
Compatible with both USB and PS/2 keyboards and mice, allowing integration into existing installations without replacing trusted equipment.



SECTION 5 - TYPICAL APPLICATIONS

Typical Applications

The Lindy Cat.6 VGA, USB & PS/2 KVM Extender is ideal for control rooms, security monitoring, industrial automation, manufacturing facilities, broadcast environments, server rooms and educational installations where computers need to be located away from operators while maintaining full keyboard, video and mouse control. The integrated switching function also makes it ideal wherever operators need convenient access to both a central system and a local workstation from a single desk.



SECTION 6 - TECHNICAL SUMMARY

Technical Summary

The extender transmits VGA video together with USB or PS/2 keyboard and mouse signals over a single Cat.5e/6 cable across distances of up to 300m, supporting analogue resolutions up to 1920x1200 at 60Hz. Both the transmitter and receiver provide local console connections, while the receiver also includes a PC connection for integrated KVM switching.

Configuration is managed through an integrated on-screen display with video adjustment, EDID management, password protection and programmable hotkeys. Firmware updates can also be performed via the USB upgrade port.

The extender is supplied with two 3-in-1 KVM cables, USB to PS/2 adapters, USB upgrade cable, multi-country power supplies and is backed by a 2-year warranty. Please note that this product is designed for direct point-to-point connections only and should not be connected through active network equipment.

Specifications

  • AV Interface: VGA
  • Console Interface: USB, PS/2
  • Interface Standard: VGA, USB (HID), PS/2
  • Supported Bandwidth: 350MHz
  • Maximum Distance: 300m (984.24ft)
  • Maximum Resolution: 1920x1200@60Hz
  • HDCP Support: -
  • EDID Pass Through: OSD menu
  • Supported Audio: -
  • Separate Audio Ports: -
  • IR Support: -
  • CEC Support: -
  • Serial Interface: -
  • Transmission Protocol: -
  • Transmission Medium: 1 x Cat.5e / Cat.6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Special Features: OSD menu, Local Console Switching, Remote PC Switching, Password Protection, Configurable Hotkeys

 Connectors

  • Transmitter Console: VGA (Female), 2 x USB Type A (Female), 2 x PS/2 (Female)
  • Transmitter PC: VGA (Female)
  • Transmitter Extension: RJ45 (Female)
  • Receiver Console: VGA (Female), 2 x USB Type A (Female), 2 x PS/2 (Female)
  • Receiver PC: VGA (Female)
  • Receiver Extension: RJ45 (Female)
  • Bi-directional Ports: -
  • Other Interfaces: USB Type B (Female) for Firmware Upgrade
  • Power: 5.5/2.5mm DC Socket

 Physical Properties

  • Dimensions (approx.) WxDxH: 130x70x28mm (5.12x2.76x1.10in) per unit
  • Housing Material: Metal
  • Net Weight: 0.30kg (0.66lb) per unit
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 0 - 90% RH (non-condensing)
  • Power Requirements: 5VDC 3A
  • Colour: Black

 Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 220x150x190mm (8.66x5.91x7.48in)
  • Gross Weight: 1.79kg (3.95lb)
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, RoHS & REACH

Package Contents

  • Cat.6 VGA, USB & PS/2 KVM Extender Transmitter
  • Cat.6 VGA, USB & PS/2 KVM Extender Receiver
  • 2 x 3-in-1 KVM Connection Cables, 1.2m
  • 2 x USB to PS/2 Adapters
  • USB Type A to Type B Cable, 1.2m
  • 2 x Multi-country Power Supplies (UK, EU, US & AUS)
  • Lindy Manual

 Purchasing Information

  • No.: 39378
  • EAN: 4002888393782
