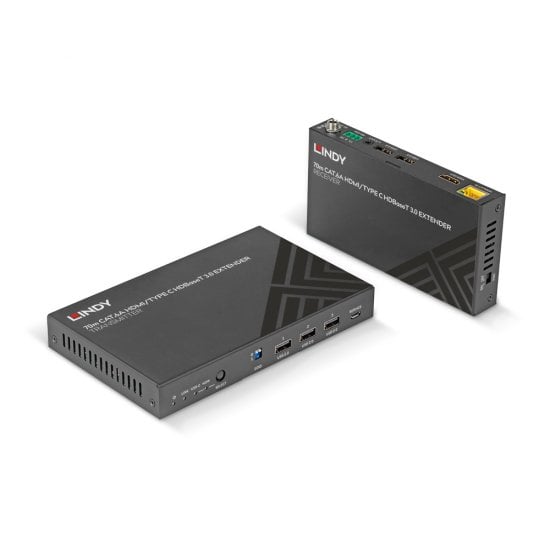

70m Cat.6A HDMI 4K60 & Type C HDBaseT 3.0 KVM Extender
- £1,186.32
Product Summary
- Sends uncompressed HDMI® resolutions up to 70m over Cat.6A network cable via HDBaseT 3.0 technology
- Supports HDMI® 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR
- Type C input supporting DisplayPort Alternate mode, USB 2.0 and 60W charging power
- Supports USB 2.0, de-embedded Audio, RS-232, bi-directional IR and PoC (Power over Cable)
- 3 year warranty
Extend HDMI® 4K60 and USB-C Over HDBaseT®
The Lindy 70m Cat.6A HDMI® 4K60 & Type C HDBaseT® 3.0 KVM Extender is a professional AV extension solution for transmitting HDMI®, USB and control signals over long distances using a single Cat.6A cable.
Professional HDMI® and USB-C Signal Extension
Designed for professional AV and IT installations, this HDBaseT 3.0 extender supports uncompressed HDMI® 4K video, USB KVM functionality, bi-directional IR and RS-232 control over Cat.6A cabling. With USB Type C input supporting DisplayPort Alternate Mode and 60W Power Delivery, it provides a versatile solution for modern workspaces and collaboration environments.
At a Glance
HDMI® and USB-C extension
Transmit AV and USB signals over Cat.6A cable.
4K60 HDR support
High quality Ultra HD video transmission.
60W USB Type-C charging
Power compatible laptops directly from the transmitter.
Power over Cable support
Single power supply simplifies installation.
Key Benefits
Uncompressed HDMI® 4K transmission
Supports HDMI® 2.0 bandwidth up to 18Gbps with resolutions up to 3840x2160@60Hz, delivering high quality AV performance over long distances.
Integrated USB Type-C connectivity
The USB Type C input supports DisplayPort Alternate Mode, USB 2.0 data and up to 60W Power Delivery for compatible laptops and mobile devices.
Flexible input switching
Switch easily between HDMI® and USB Type C source inputs using the front panel button or automatic switching functionality.
Advanced control and integration
Bi-directional IR, RS-232 and API control provide flexible integration into professional AV and control system environments.
Audio de-embedding support
3.5mm analogue audio outputs on both units allow connection to speakers or amplifiers for external audio playback.
Simplified installation with PoC
Power over Cable allows both units to operate using a single power supply connected to one side of the installation.
Typical Applications
Ideal for conference rooms, collaborative workspaces, lecture theatres, digital signage and professional AV installations where high quality video, USB connectivity and flexible control are required across long distances.
Technical Summary
The Lindy 70m Cat.6A HDMI® 4K60 & Type C HDBaseT 3.0 KVM Extender supports HDMI® 2.0 bandwidth up to 18Gbps and resolutions up to 3840x2160@60Hz 4:4:4 8bit. Using HDBaseT 3.0 technology over Cat.6A cabling, it supports transmission distances up to 70m depending on resolution.
The transmitter includes HDMI®, USB Type C and USB Type B inputs, while the receiver provides HDMI® output, USB ports and analogue audio outputs. The USB Type C connection supports DisplayPort Alternate Mode, USB 2.0 data transfer and up to 60W Power Delivery. Additional features include bi-directional IR, RS-232 pass-through, API support, EDID management and 4K to 1080p downscaling.
With durable metal housings, mounting brackets and Power over Cable support with selectable On/Off control, the extender is designed for reliable professional installations. It operates via a 24VDC power supply and is backed by a 3-year warranty.
