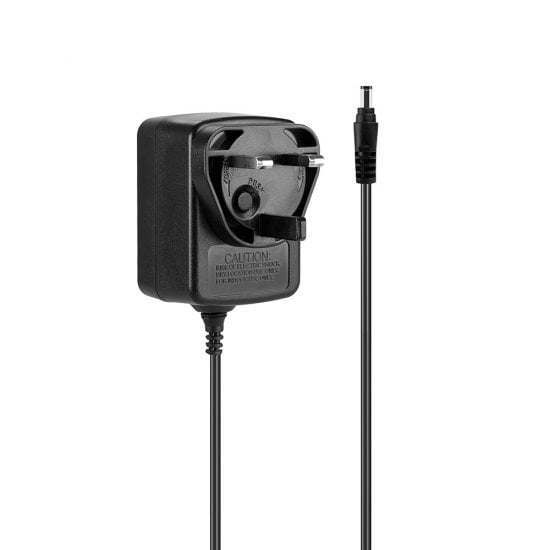

24VDC 1.25A Multi-country Power Supply, 5.5/2.1mm

The Lindy multi-country power supply is a regulated and suitable solution for powering connected equipment which require an output voltage and amperage up to 24V 1.25A.

The included UK, EU, US & AUS adapters allow for global use of the power supply, while a screw type DC jack ensures a secure fitting with compatible devices, avoiding risk of accidental disconnection.

Specifications

• Input Voltage: 100…240VAC
• Input AC Frequency: 50…60Hz
• Output Voltage: 24V
• Output Voltage Accuracy: ±5%
• Output Current (max.): 1.25A
• Output Power: 30W
• Average active efficiency: 0.8695
• Efficiency at low load (10%): 0.777
• No-load Power Consumption: 0.1W

Physical Properties

• Dimensions (approx.) WxDxH: 50x72x38mm (1.97x2.83x1.5in)
• DC Cable Length: 1.5m (4.92ft)
• DC Connector Size: 5.5/2.1mm
• Housing Material: Plastic
• Net Weight: 0.15kg (0.33lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Operating Humidity: 0 - 75% RH (Non-condensing)
• Storage Humidity: 0 - 95% RH (Non-condensing)
• Colour: Black

Miscellaneous

• Manufacturer Name: Powertron
• Commercial Registration No. : 91441900082613400
• Manufacturer Address: 6F, No.115, Lide St., Zhonghe Dist., New Taipei City 23556,Taiwan
• Manufacturer Model No.: PA1024-240IB125
• Packaging Type: Carton Box
• Packaging Dimensions: 140x40x120mm (5.51x1.57x4.72in)
• Gross Weight: 0.24kg (0.53lb)
• Warranty (Years): 2
• Certificated: EMC
• LVD
• ErP
• UL
• CCC
• RCM
• PSE
• RoHS
• REACH
• California Proposition 65

Package Contents

• Multi-country Power Supply
• UK, EU, US & AUS Adapters
• Lindy Manual

Purchasing Information

• No.: 73826
• EAN: 4002888738262
