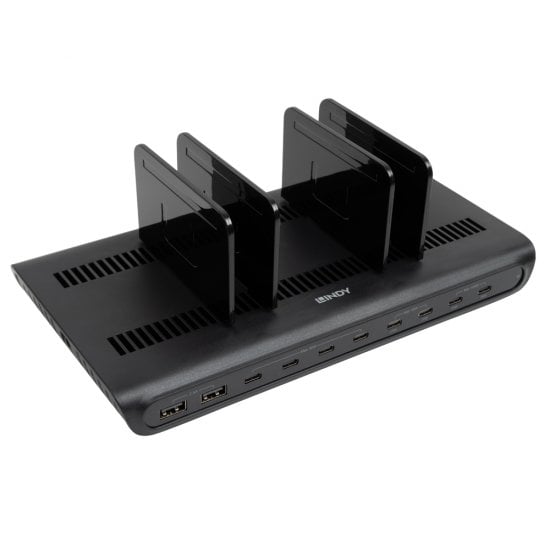

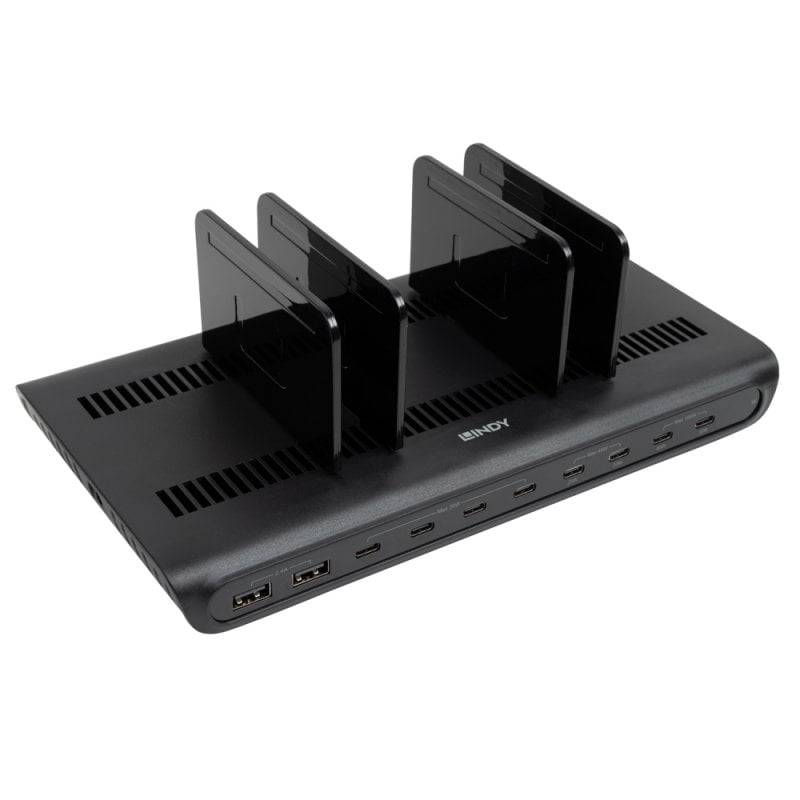

240W 10 Port USB Charging Station

Part No: 73447
  • £215.04
199 In Stock Now   |
Loading...

Product Summary

  • Simultaneous charging of multiple tablets, smartphones and/or a laptop or Macbook with up to 240W*
  • Max. 5V 2.4A charging per USB Type A port, max. 30W, 45W or 100W charging per USB Type C port
  • 8 USB Type C ports support Power Delivery 3.0 up to 30W, 45W or 100W
  • Battery Charging Standard 1.2 supports fast charging, QC 5 / QC 3+ / FCP / SFCP Charging Protocols supported
  • 2 year warranty

SECTION 1 - HERO HEADLINE

Power and Organise Multiple USB Devices from One Charging Station



The Lindy 240W 10 Port USB Charging Station provides a centralised solution for charging smartphones, tablets, laptops and other USB devices, combining eight USB Type C ports, two USB Type A ports and intelligent charging technology for shared device environments.

SECTION 2 - FEATURE CALLOUT

High Power Multi-Device Charging with USB Power Delivery

Designed for environments where multiple devices need to remain powered and organised, the charging station combines eight USB Type C ports with Power Delivery 3.0 and two USB Type A charging ports. USB Type C outputs provide charging capabilities of up to 30W, 45W or 100W depending on the port, while support for multiple fast charging protocols automatically provides compatible devices with an appropriate charging profile.

SECTION 3 - AT A GLANCE

At a Glance

Multi-device charging
Charges up to eight USB Type C and two USB Type A devices simultaneously.

Up to 100W USB-C PD
Supports high power charging for compatible laptops alongside tablets and smartphones.

Intelligent fast charging
Supports PD 3.0, PD 2.0, QC 5, QC 3+, FCP, SCP, AFC, SFCP and BC 1.2 protocols.

Integrated device organisation
Supplied dividers keep multiple phones and tablets positioned neatly while charging.

SECTION 4 - KEY BENEFITS

Key Benefits

Centralises charging for shared devices
Ten charging ports provide one convenient location for powering multiple smartphones, tablets and laptops, reducing reliance on individual mains adapters and separate charging points.

Charges demanding USB-C equipment
Dedicated USB Type C Power Delivery outputs support up to 100W, providing the power required by compatible notebooks and workstations as well as lower-powered mobile devices.

Automatically adapts to connected devices
Support for a broad range of charging protocols allows the station to recognise compatible equipment and provide an appropriate charging current for efficient everyday use.

Keeps devices organised while charging
Twelve removable plastic dividers can be positioned on top of the station to accommodate different device widths and keep tablets and smartphones separated and accessible.

Built-in charging protection
Overcurrent and short-circuit protection help safeguard the charging station and connected equipment, while LED indication provides clear charging status information.

Ready for international deployment
UK, Schuko, US and Australian mains cables are supplied, making the station practical for organisations, events and installations operating across multiple regions.



SECTION 5 - TYPICAL APPLICATIONS

Typical Applications

The 240W 10 Port USB Charging Station is ideal for schools, universities, libraries, offices, hotels, restaurants, training facilities and event environments where multiple portable devices need to be charged from a central location. Its combination of USB Type C and USB Type A connectivity makes it suitable for mixed device fleets, while the removable dividers help keep shared smartphones and tablets organised during charging.



SECTION 6 - TECHNICAL SUMMARY

Technical Summary

The charging station provides eight USB Type C outputs and two USB Type A outputs. Four USB Type C PD ports support up to 30W each, two support up to 45W each and two support up to 100W each. When the two 45W ports are shared they provide 25W and 20W, while the paired 100W ports provide 65W and 35W when used simultaneously.

The USB Type C connections support PD 3.0, PD 2.0, QC 5, QC 3+, FCP, SCP, AFC and SFCP charging protocols, while the two USB Type A ports support Apple 5V 2.4A and BC 1.2 charging. Integrated overcurrent and short-circuit protection provide additional protection for the station and connected equipment.

The compact enclosure measures approximately 248 x 135 x 29mm and is supplied with 12 removable dividers, a 24V 10A power supply, UK, Schuko, US and Australian mains cables and a Lindy manual. The charging station is backed by a 2-year warranty.



* The power output depends mainly on the thermal design, the rated power of the components and the devices´ charging behaviour.

Specifications

  • Interface: USB
  • Compatibility: 2x USB Type A ports and 8x USB Type C for USB devices
  • Power Requirements: 24V 10A
  • Output Power: 211.2W
  • Power Delivery 3.0:
    • 4 Type C PD ports support up to 30W each (5V3A/9V3A/12V2.5A/15V2A/20V1.5A)
    • 2 Type C PD ports support up to 45W each (5V3A/9V3A/12V3A/15V3A/20V2.25A), 1x25W + 1x 20W if shared
    • 2 Type C PD ports support up to 100W each (5V3A/9V3A/12V3A/15V3A/20V5A), 1x65W + 1x 35W if shared
  • Special Features: 2 Type A ports support Apple 5V 2.4A and BC 1.2 Charging Protocols; 8 Type C ports support PD3.0/PD2.0/QC5/QC3+/FCP/SCP/AFC/SFCP Charging Protocols; Overcurrent and short-circuit protection, LED display shows charging status



Connectors

  • Input: 1x DC 5.5/2.5mm (Female)
  • Output: 2x USB Type A (Female), 8x USB Type C (Female)



Physical Properties

  • Dimensions (approx.) WxDxH: 248x135x29mm (9.76x5.31x1.14in)
  • Housing Material: Plastic
  • Net Weight: 0.36kg (0.79lb)
  • Operating Temperature: 5°C - 35°C (41°F - 95°F)
  • Storage Temperature: -20°C - 50°C (-4°F - 122°F)
  • Humidity: 20% - 80% RH (non-Condensing)
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 270x160x110mm (10.63x6.30x4.33in)
  • Gross Weight: 1.9kg (4.19lb)
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, LVD, RoHS, REACH, California Proposition 65



Package Contents

  • USB Charging Station
  • 12 plastic separators
  • 24V 10A PSU with 5.5/2.5mm DC cable, 0.9m (2.95ft)
  • 4 country specific power cables (Schuko/US/UK/AUS to IEC C5), 0.9m (2.95ft)
  • LINDY Manual



Purchasing Information

  • No.: 73447
  • EAN: 4002888734479
