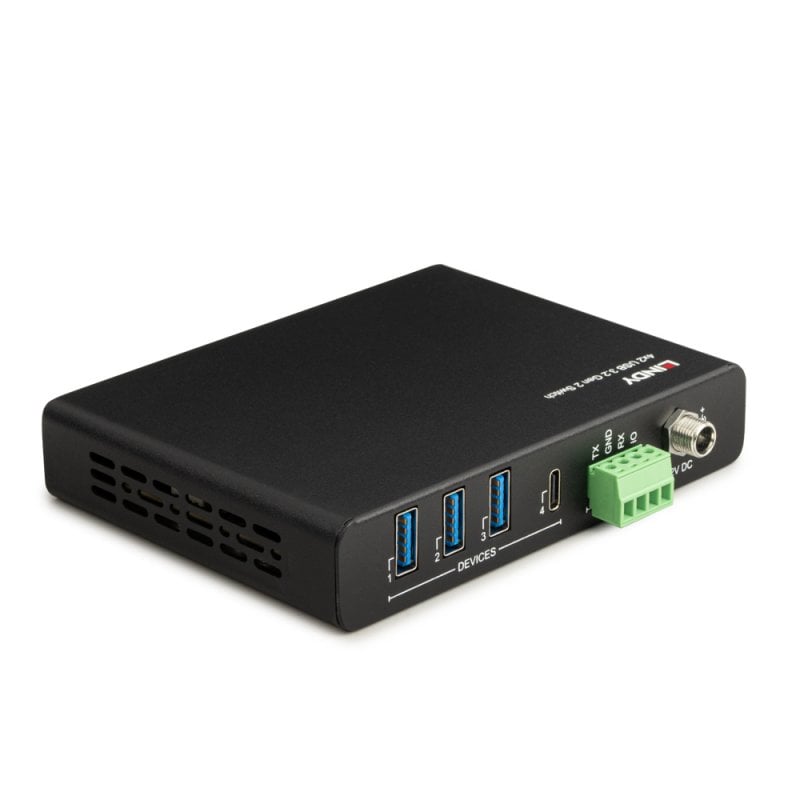

4x2 USB 3.2 Gen 2 Switch, 10Gbps, 4 USB Devices to 2 Computers

Part No: 43431
  • £272.94
68 In Stock Now   |
Loading...

Product Summary

  • Share up to four compatible USB peripherals between two computers without repeatedly disconnecting and reconnecting device cables
  • Connect high-speed USB devices with USB 3.2 Gen 2 data rates up to 10Gbps, using compatible computers, peripherals and cables
  • Choose front panel button or automatic switching, with RS-232 and GPIO control for integration into external control systems
  • Connect peripherals through three USB Type A and one USB Type C device ports, with two USB Type B ports for the host computers
  • 3 year warranty

SECTION 1 - HERO HEADLINE

Share your meeting room USB equipment between two computers



Keep compatible USB cameras and speakerphones connected while choosing between a room PC and a laptop. The Lindy 4x2 USB 3.2 Gen 2 Switch shares up to four USB peripherals between two computers, reducing repeated cable changes and the need for duplicate equipment.

SECTION 2 - FEATURE CALLOUT

Put USB selection under room control

RS-232 and GPIO control allow host selection to form part of an external control system. Front panel button and automatic switching options also support local operation, giving installers a choice of control methods to suit the setup.

SECTION 3 - AT A GLANCE

At a Glance

Four devices, two computers
Share the connected USB peripherals with the selected host computer.

Up to 10Gbps
USB 3.2 Gen 2 with compatible computers, peripherals and cables.

Type A and Type C
Three USB Type A and one USB Type C device connections.

No switch software required
The switch needs no additional drivers or software to operate.

SECTION 4 - KEY BENEFITS

Key Benefits

Keep your peripheral connections in place
Share compatible webcams, speakerphones, printers or storage without moving each device cable when changing computers.

Use newer and older USB equipment
USB 3.2 Gen 2 supports faster USB devices, with backwards compatibility for USB 3.2 Gen 1, USB 3.0, USB 2.0 and USB 1.1. Each connection operates within the capabilities of the equipment and cables used.

Connect peripherals with different plugs
Type A and Type C device sockets accommodate a mix of compatible USB peripherals, while two Type B host sockets connect the computers.

Choose desktop or mounted placement
Included mounting ears and rubber feet let you position the compact metal switch to suit your workspace or installation.



SECTION 6 - TECHNICAL SUMMARY

Technical Summary

The black metal housing measures 112 x 90 x 22mm. An external 12V 2A multi-country power supply with UK, EU, US and Australian adapters and a screwable DC connector is included, together with mounting ears, four rubber feet and a 1.4m RS-232 9-pin to 3-pin terminal block cable.

GPIO Level mode disables front panel button host switching. Connected peripherals may require their own drivers or software. When sharing storage, complete active operations and follow the device and operating system instructions before switching hosts.

For indoor use with appropriate ventilation. Covered by a 3 year warranty.

Specifications

  • USB Standard: USB 3.2 Gen 2
  • Supported Bandwidth: 10 Gbps
  • Chipset: Fresco Logic F103RCT6, GigaDevice GD32F
  • Compatibility: USB equipped computers
  • Power: 900mA on each USB port
  • Special Features: Switching by buttons; Auto-switching, RS-232 / GPIO control

Connectors

  • Inputs: 2 x USB 3.0 Type B (Female)
  • Outputs: 3 x USB Type A (Female), 1x USB Type C (Female)
  • Control ports: RS-232 3-Pin Terminal Block
  • Power port: 5.5/2.1mm

Physical Properties

  • Dimensions WxDxH: 112x90x22mm (4.41x3.54x0.87in)
  • (Fixed) Cable Length: -
  • Housing Material: Metal
  • Net Weight: 0.25kg (0.55lb)
  • Operating Temperature: -5°C - 55°C (23°F - 131°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 0 - 90% RH ( non-condensing)
  • Power Requirements: 12V 2A
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton box
  • Packaging Dimensions: 280x182x55mm (11.02x7.17x2.17in)
  • Gross Weight: 0.71kg (1.56lb)
  • Warranty (Years): 3
  • Product Compliance: CE, FCC, RoHS & REACH, California Proposition 65

Package Contents

  • 4x2 USB 3.2 Gen 2 Switch
  • 4 pin Terminal Block
  • RS-232 9pin to Terminal Block 3pin Cable, 1.4m
  • Multi-country Power Supply (UK, EU, US & AUS) with screwable DC connector
  • Mounting kit (2x mounting ears with screws)
  • 4x rubber feet
  • Lindy Manual

Purchasing Information

  • No.: 43431
  • EAN: 4002888434317
