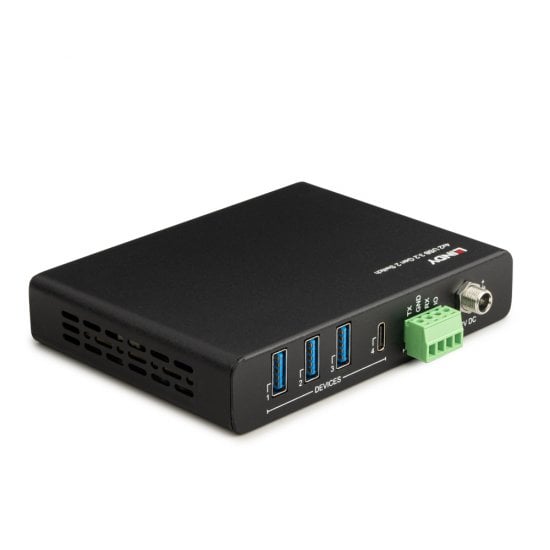

4x2 USB 3.2 Gen 2 Switch

Part No: 43431
  • £272.94
Item out of Stock   |
Loading...

Product Summary

  • USB 3.2 Gen 2 standard supports 10Gbps data rates, backwards compatible with USB 3.2 Gen 1/USB 3.0/USB 2.0/1.1
  • Supports Auto-switching, switching between computers with button, RS-232 and GPIO control
  • Provides 3 USB Type A ports and 1 USB Type C port for device connection
  • Plug & Play, no software required
  • 3 year warranty
The Lindy USB 3.2 Gen 2 Switch allows the user to share up to 4 USB Type A and Type C devices between 2 hosts in many different ways: by pushing the button on the front panel, Auto-switching, RS-232 commands or GPIO control.

This 4x2 USB 3.2 Gen 2 Switch is ideal for sharing Huddle Devices like USB cameras or speakerphones in meeting rooms between a Huddle PC and a laptop, but it also allows to share printers, storage devices or webcams in office environments. Supporting USB bandwidths up to 10Gbps, this switch guarantees high performance and compatibility even for applications which require high bandwidths.

Each USB port provides up to 900mA power to the connected device.




Specifications

  • USB Standard: USB 3.2 Gen 2
  • Supported Bandwidth: 10 Gbps
  • Chipset: Fresco Logic F103RCT6, GigaDevice GD32F
  • Compatibility: USB equipped computers
  • Power: 900mA on each USB port
  • Special Features: Switching by buttons; Auto-switching, RS-232 / GPIO control

Connectors

  • Inputs: 2 x USB 3.0 Type B (Female)
  • Outputs: 3 x USB Type A (Female), 1x USB Type C (Female)
  • Control ports: RS-232 3-Pin Terminal Block
  • Power port: 5.5/2.1mm

Physical Properties

  • Dimensions WxDxH: 112x90x22mm (4.41x3.54x0.87in)
  • (Fixed) Cable Length: -
  • Housing Material: Metal
  • Net Weight: 0.25kg (0.55lb)
  • Operating Temperature: -5°C - 55°C (23°F - 131°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 0 - 90% RH ( non-condensing)
  • Power Requirements: 12V 2A
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton box
  • Packaging Dimensions: 188x138x58mm (7.4x5.43x2.28in)
  • Gross Weight: 0.55kg (1.21lb)
  • Warranty (Years): 3
  • Product Compliance: CE, FCC, RoHS & REACH, California Proposition 65

Package Contents

  • 4x2 USB 3.2 Gen 2 Switch
  • 4 pin Terminal Block
  • RS-232 9pin to Terminal Block 3pin Cable, 1.4m
  • Multi-country Power Supply (UK, EU, US & AUS) with screwable DC connector
  • Mounting kit (2x mounting ears with screws)
  • 4x rubber feet
  • Lindy Manual

Purchasing Information

  • No.: 43431
  • EAN: 4002888434317
