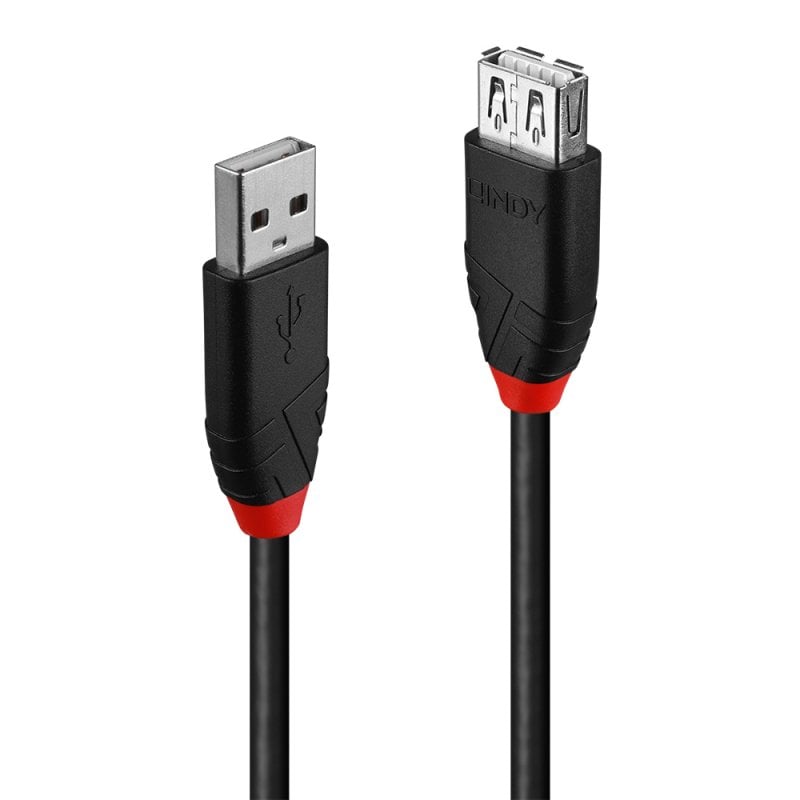

5m USB 2.0 Slim Active Extension

Part No: 42817
  • £20.59
Item out of Stock   |
Loading...

Product Summary

  • 5 metre USB 2.0 Active Extension Repeater Lead
  • Supports transfer rates up to 480Mbps
  • For even greater distances simply connect up to 5 cables in series
  • Plug & Play
  • 2 year warranty

The Lindy USB 2.0 Active Extension Slim Cable uses built-in active electronics to extend the cable length of a USB 2.0 device by an additional 5m whilst continuing to support data transfer rates of up to 480Mbps.

With its USB A male and USB A female connector it allows Type A devices to be connected at longer distances and ensures flexible positioning. Up to 5 extension cables can be chained together to achieve a distance of 25m.

The cable's unique and slim design allows the active electronics to fit into a standard USB connector - an advantage over other active USB leads which use bulky connectors. Compatible with all USB Type A equipped computers.

Connectors
  • Connector A: USB Type A Male
  • Connector B: USB Type A Female
  • Power: -
  • Housing Material: Plastic
  • Connector Plating: Nickel
  • Pin Construction: Brass
  • Pin Plating: Gold
  • Dimensions (approx.) WxDxH:
      • USB A Male: 15x40x6mm (0.59x1.57x0.24in)
      USB A Female: 15x45x8mm (0.59x1.77x0.31in)

Cable Construction
  • Length: 5m (16.4ft)
  • Standard: USB 2.0
  • Colour:  Black
  • Type: Round
  • Jacket Diameter: 4.8mm (0.19in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 24AWG+28AWG
  • Shielding: AL Mylar

Specifications
  • Supported Bandwidth: 480 Mbps
  • Nominal Attenuation:
      • 24AWG: 93.25Ohm/km
      28AWG: 237.25Ohm/km
  • Minimum Bend Radius: 48mm (1.89in)
  • Maximum Tensile Load: -
  • Operating Temperature: 0°C - 70°C (32°F - 158°F)
  • Storage Temperature: -10°C - 80°C (14°F - 176°F)
  • Transmission Medium: Twisted Pair
  • Transmission Technology: USB 2.0

Miscellaneous
  • Packaging Type: Polybag
  • Packaging Dimensions: 214x146x38mm (8.43x5.75x1.5in)
  • Net Weight: 0.18kg (0.4lb)
  • Gross Weight: 0.2kg (0.48lb)
  • Warranty (Years): 2
  • Certified: CE, UKCA, FCC, RoHS & REACH

Package Contents
  • USB 2.0 Active Extension Slim 5m

Purchasing Information
  • No.: 42817
  • EAN: 4002888428170

This product is also available in other lengths
  • 42631 - 20m (65.62ft)
Showing our 1 review for 5m USB 2.0 Slim Active Extension. Write a review
Review Summary - 5 out of 5 based on 1 rating.
February 17, 2023 | Dave
Extending GPS receiver

GPS receivers have 4m tails, but the distance from the computer is 9m. Added the extenders and clearly the increase in voltage improved the reception as I got an SBAS satellite for the first time in months, as well as more orbital satellites.
