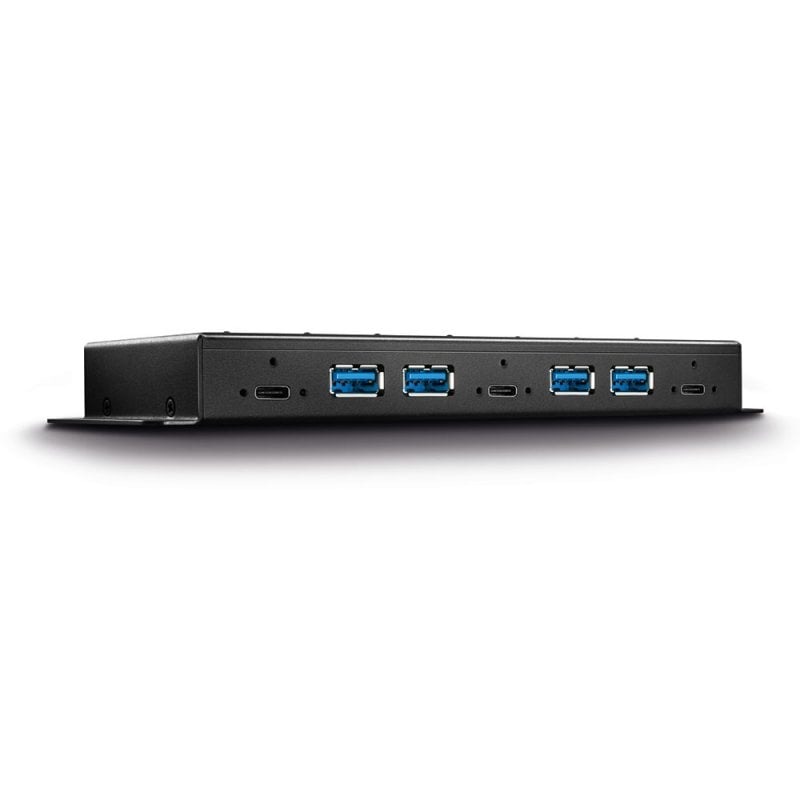

7 Port USB 3.2 Gen 2 Metal Hub

The Lindy 7 Port USB 3.2 Gen 2 Metal Hub has been designed to provide reliable performance in demanding operating environments at USB 3.2 Gen 2 speeds up to 10 Gbps.

This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection.  With  robust metal housing and integrated mounting brackets this hub is the ideal solution for industrial environments. All Type C sockets of the hub allow the connection of single or dual screw USB 3.2 cables which are compliant with USB-IF Type C locking specification.

Each port features individual short circuit protection - and all 7 USB ports support the Battery Charging specification 1.2 with a total charging power of 40 Watts for all 7 ports. The hub can be powered by the included power supply or the terminal block, ensuring flexible, secure and uninterrupted electricity supplies.

Information about USB 3.0, 3.1 & 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Specifications

• USB Standard: USB 3.2 / 3.1 Gen 2
• Supported Bandwidth: 10Gbps
• Chipset: 2x VL822
• Compatibility: USB Type C equipped computers, Thunderbolt 3
• Power Delivery: -
• Special Features: Integrated brackets for mounting; allows connection of USB Type C locking cables; Terminal Block; Contains 2x USB 3.0 hub

Connectors

• Inputs: 1 x USB Type C (Female)
• Outputs: 3 x USB Type C (Female), 4 x USB Type A (Female)
• Power: DC screw connector

Physical Properties

• Dimensions (approx.) WxDxH: 184.5x64.3x20mm (7.26x2.53x0.79in)
• (Fixed) Cable Length: -
• Housing Material: Metal
• Net Weight: 0.3kg (0.66lb)
• Operating Temperature: 0°C - 50°C (32°F -122°F)
• Storage Temperature: -20°C - 60°C (-4°F -140°F)
• Humidity: 90% RH (non-condensing)
• Power Requirements: 16VDC 3A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 260x180x70mm (10.24x7.09x2.76in)
• Gross Weight: 0.7kg (1.54lb)
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS, REACH, California Proposition 65

Package Contents

• 7 Port USB 3.2 Gen 2 Metal Hub
• 0.55m USB 3.2 Gen 2 Dual Screw Type C Male to Male Cable
• Multi-Country Power Supply (EU, UK, US, AUS) with screw type DC connector
• Lindy Manual

Purchasing Information

• No. 43275
• EAN: 4002888432757

• Datasheet for 43275 7 Port USB 3.1 Gen 2 Metal Hub
• UKCA DoC for 43275 7 Port USB 3.1 Gen 2 Metal Hub
• Manual for 43275
• Product Safety Information
