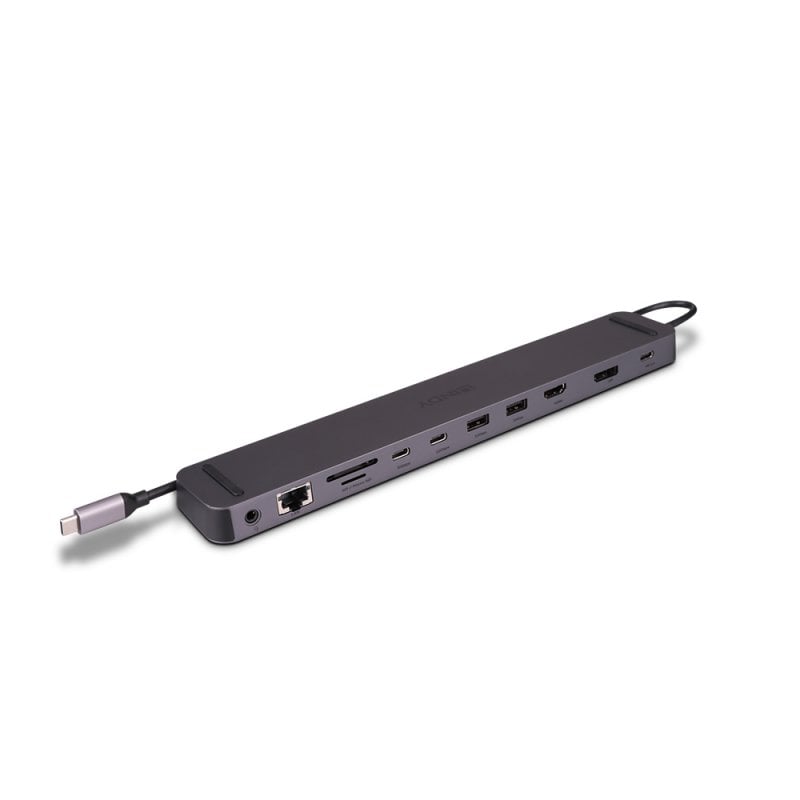

DST-Mini XT 810 Laptop Docking Station | USB-C | 1x 8K DP, 2x 4K HDMI®/DP | 100W PD

The DST-Mini XT 810 is a high performance, multifunctional solution for connecting laptops, tablets or mobile phones to a range of interfaces including an 8K 30Hz DisplayPort or HDMI® display or two displays simultaneously at 4K 60Hz*, using a single cable. It also supports video resolutions of 4K 120Hz, making it the ideal tool for high resolution video editing or game streaming.

This docking station delivers a whole host of capable ports to connect your devices into your workflow. With SuperSpeed USB and Ethernet, you can expect to have a blazing fast experience and improve your productivity whilst the Card Readers (SD & Micro-SD) allow you to expand your storage capacity beyond that of your device. Through a single USB-C cable, connect to multiple SuperSpeed 10Gbps USB Type A or Type C ports, a 3.5mm combined headphone jack, Gigabit Ethernet, (Micro-) SD card slots, DisplayPort and HDMI.

The Docking Station also supports Power Delivery 3.0 up to 100W for charging the connected laptop.  A power supply is not included. The dock can be used with the power supply supplied with the laptop or a power supply can be purchased separately.**

This USB-C Laptop Mini Docking Station is compatible with computers featuring the USB Type C port with support for DisplayPort 1.4 Alternate Mode, i.e. USB4 or USB 3.2 as well as Thunderbolt host devices. DST-Mini XT 801 comes in  a stylish aluminium case and is optimally designed to place the laptop on it with rubber feet at the top and bottom to ensure a secure hold. It is designed to improve ergonomics and assist with the heat dissipation from notebooks by creating more space for the fans to operate.

*Please note that macOS does not support MST.

** Please note that the Docking Station requires 15W for its own operation.

Specifications

• Interface: USB Type C to 1x HDMI® / 1x DP/ 2x USB Type A / 2x USB Type C / 1x RJ45 / 1x SD / 1x microSD / 1x 3.5mm Audio
• Supported Bandwidth: HDMI® 2.1 with 48Gbps, DP 1.4a with 32.4Gbps, USB 3.2 / 3.1 up to 10 Gbps, Gigabit LAN (10/100/1000 Mbps)
• Maximum Input Resolution: 8K 7680x4320 30Hz
• Maximum Output Resolution:
  • Single Display: 7680x4320 30Hz, 3840x2160 120Hz
  • Dual Displays: 3840x2160 60Hz (each)
• Chipset: VMM6210, VL822, GL3510, GL3224, RTL8153B, ALC4032, VL102
• Compatibility: USB Type C/Thunderbolt equipped computers with DisplayPort Alternate Mode support; Windows, macOS, Linux, Android, ChromeOS.
• Power Delivery: PD 3.0 up to 100W (20V 5A)
• HDCP Support: HDCP 1.4 & 2.2
• Supported Audio: Sampling rate 192kHz/24bit
• Separate Audio Ports: 1x Audio combo port 3.5mm
• Special Features: DisplayPort Alternate Mode, MST Extended display support for Windows, Battery Charging 1.2 (only USB 3.2 Gen 2 Type C port), supports simultaneous card reading, PXE (Preboot Execution Environment) and Wake on LAN (WOL), Supports MAC Address Pass-through (this feature is dependent upon the compatibility of the hardware used in each set up)

Connectors

• Inputs: 1x USB Type C (Male)
• Outputs: 1x HDMI® (Female), 1x DisplayPort (Female), 1x RJ45 (Female), 2x USB Type A (Female), 2x USB Type C (Female) / 1x SD slot, 1x microSD slot, 1x 3.5mm Audio (Female)
• Power: 1 x USB Type C (Female) PD port

Physical Properties

• Dimensions WxDxH: 270x45x16mm (10.63x1.77x0.63in)
• (Fixed) cable length: 360mm (14.17in)
• Housing Material: Aluminium
• Net Weight: 0.23kg (0.51lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -10°C - 70°C (14°F - 158°F)
• Humidity: 0% - 85% RH (non-condensing)
• Power Requirements: 15W
• Colour: Anthracite

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 365x93x35mm (14.37x3.66x1.38in)
• Gross Weight: 0.37kg (0.82lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, REACH & RoHS, CP65

Package Contents

• USB-C Laptop Mini Docking Station
• Lindy manual

Purchasing Information

• No.: 43392
• EAN: 4002888433921
