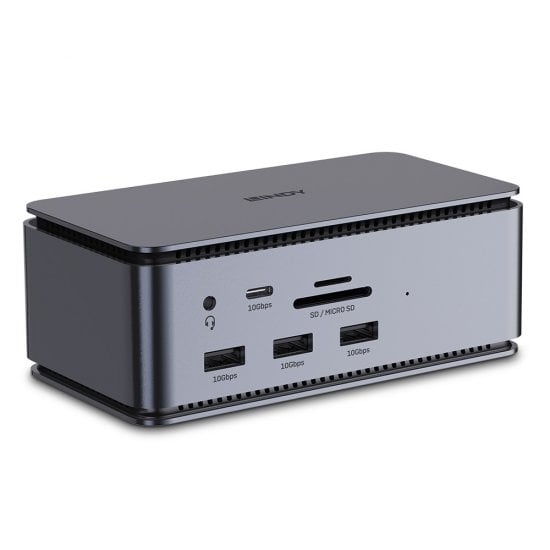

DST-Pro USB4, USB Laptop Docking Station

The DST-Pro USB4 of the latest USB4 generation is a high performance, multifunctional solution for connecting laptops, tablets or mobile phones to a range of interfaces including an 8K 30Hz DisplayPort or HDMI® display or two displays simultaneously at 4K 60Hz*, using a single cable. It also supports video resolutions of 4K 120Hz, making it the ideal tool for high resolution video editing or game streaming.

This docking station delivers a whole host of capable ports to connect your devices into your workflow. With SuperSpeed USB and Ethernet, you can expect to have a blazing fast experience and improve your productivity whilst the Card Readers (SD & Micro-SD) allow you to expand your storage capacity beyond that of your device. Through a single USB-C cable, connect to multiple SuperSpeed 10Gbps USB Type A or Type C ports, a 3.5mm combined headphone jack, Gigabit Ethernet, (Micro-) SD card slots, DisplayPort and HDMI®.

The USB4 Docking Station also supports Power Delivery 3.0 up to 100W for charging the connected laptop.  A power supply is not included. The dock can be used with the power supply supplied with the laptop or a power supply can be purchased separately.

This USB4 Laptop Docking Station is compatible with computers featuring the USB Type C port with support for DisplayPort 1.4 Alternate Mode, i.e. USB4 or USB 3.2 as well as Thunderbolt Type C host devices.

*Please use the USB4 cable included in the scope of delivery to avoid compatibility issues.

Specifications

• Interface: USB Type C to 6x USB Type A / 1x USB Type C / 1x RJ45 / 1x DisplayPort / 1x HDMI® / 1x SD & 1x microSD / 1x 3.5mm Audio (combo) / 1x USB Type C PD
• Supported Bandwidth:  DP 1.4 with 32.4Gbps, HDMI® 2.1 with 48Gbps, USB 3.2 with max. 10Gbps, USB 2.0 with max. 480Mbps, Gigabit LAN with 10/100/1000Mbps, microSD/TF 3.0 (max. 1Gbps)
• Maximum Input Resolution: 7680x4320 30Hz
• Maximum Output Resolution:
• Single Display: 7680x4320 30Hz, 3840x2160 120Hz
• Dual Displays: 3840x2160 60Hz
• Chipset: VL830, VMM6210, AX88179A, GL3224, VL105
• Compatibility: USB4/Thunderbolt Type C equipped computers with DisplayPort Alternate Mode support
• Power Delivery: PD 3.0 up to 100W (20V 5A)
• HDCP Support: HDCP 2.2
• Supported Audio: Audio 1-32 CH LPCM 192KHz, HBR up to 1536 KHz, IEC 61937 compressed audio, Dolby ATMOS, DTS: X format
• Separate Audio Ports: 1 x Audio combo port 3.5mm
• Special Features: DisplayPort Alternate Mode, 3x USB Gen 2 Type A  Battery Charging 1.2 ports (total current limit is 2.3A), Supports MST for Windows (macOS does not support MST), supports simultaneous card reading (micro-SD), PXE (Preboot Execution Environment) and Wake on LAN (WOL) support

Connectors

• Inputs: 1 x USB Type C (Female)
• Outputs: 6x USB Type A (Female), 1x USB Type C (Female), 1x RJ45 (Female), 1x DisplayPort (Female), 1x HDMI® (Female),  1x SD (Female), 1x MicroSD (Female),  1x 3.5mm audio jack
• Power: 1 x USB Type C (Female) PD port

Physical Properties

• Dimensions WxDxH: 129x69.5x48mm (5.08x2.74x1.89in)
• Housing Material: Aluminium Alloy
• Net Weight: 0.3kg (0.66lb)
• Operating Temperature: 0°C - 40°C  (32°F -104°F)
• Storage Temperature: -10°C - 70°C (14°F - 158°F)
• Humidity: 10 - 90% RH (non-condensing)
• Power Requirements: 20W
• Colour: Anthracite

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 174x151x56mm (6.85x5.94x2.2in)
• Gross Weight: 0.6kg (1.32lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, REACH & RoHS

Package Contents

• USB4 Laptop Docking Station
• 0.8m USB4 Type C Male to Male cable
• Lindy Manual

Purchasing Information

• No.: 43372
• EAN: 4002888433723

• UKCA DoC for 43372
• Manual for 43372
• Product Safety Information
