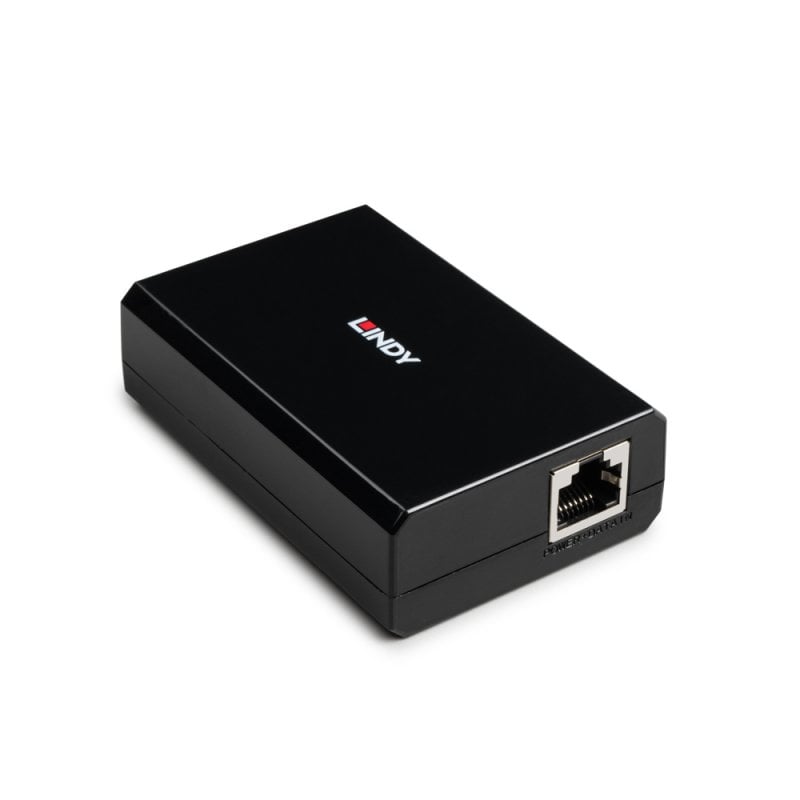

PoE to Type C Splitter Converter

Part No: 73474
  • £66.54
41 In Stock Now   |
Loading...

Product Summary

  • Splits data and power from a PoE connection
  • Type C output with max power up to 45W
  • 10/100/1000Mbps Gigabit Ethernet
  • Supports IEEE802.3af, IEEE802.3at, IEEE802.3bt PoE standards
  • 2 year warranty

This converter provides up to 45W power and gigabit Ethernet data from a PoE signal.

The input signal is split into Type-C and RJ45 outputs, allowing connection to non-PoE devices such as access points, routers, cameras, laptops, tablets, and more.

It can convert PoE, PoE+ High Power, and Ultra PoE++ connections, ensuring compatibility with a wide range of Power over Ethernet switches and devices.

The USB-C output voltage is automatically adjusted and supports 5V/3.4A, 9V/3A, 12V/3A, 15V/3A, and 20V/2.25A.

This compact and high efficiency power converter provides also over voltage, over current and short circuit protection with over temperature cut off while the installation is plug and play without any external power supply; the converter is self-powered from the PoE input. A status LED indicates when input power is detected.

Connectors

  • Input: RJ45 (Female) PoE Data + Power
  • Ouput: RJ45 (Female) Gigabit only for data, USB Type C (Female) only for power

Specifications

  • Power Input: 60W PoE (Ultra PoE++ IEEE802.3bt), 30W PoE (High Power PoE+ IEEE802.3at), 15W PoE (IEEE802.3af)
  • Power Output: up to 45W
  • USB Power Delivery: Yes
  • Output Voltage: 5V/3.4A, 9VDC/3A, 12VDC/3A, 15V/3A and 20V/2.25A
  • Ethernet Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
  • Pass Through Data Rates: 10/100/1000 Mbps
  • Device Power Consumption: <0.1W
  • Additional Features: over voltage, over current, short circuit and over temperature protection

Physical Properties

  • Dimensions (approx.) WxDxH: 80x54x24mm (3.15x2.13x0.94in)
  • Housing Material: Plastic
  • Net Weight: 0.085Kg (0.19lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Operating Humidity: 90% RH (non-condensing)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Storage Humidity: 95% RH (non-condensing)
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 150x80x25mm (5.91x3.15x0.98in)
  • Gross Weight: 0.11Kg (0.24lb)
  • Warranty (Years): 2
  • Product Compliance: CE, RoHS, REACH

Package Contents

  • PoE to Type C Splitter Converter
  • Lindy Manual

Purchasing Information

  • No.: 73474
  • EAN: 4002888734745
