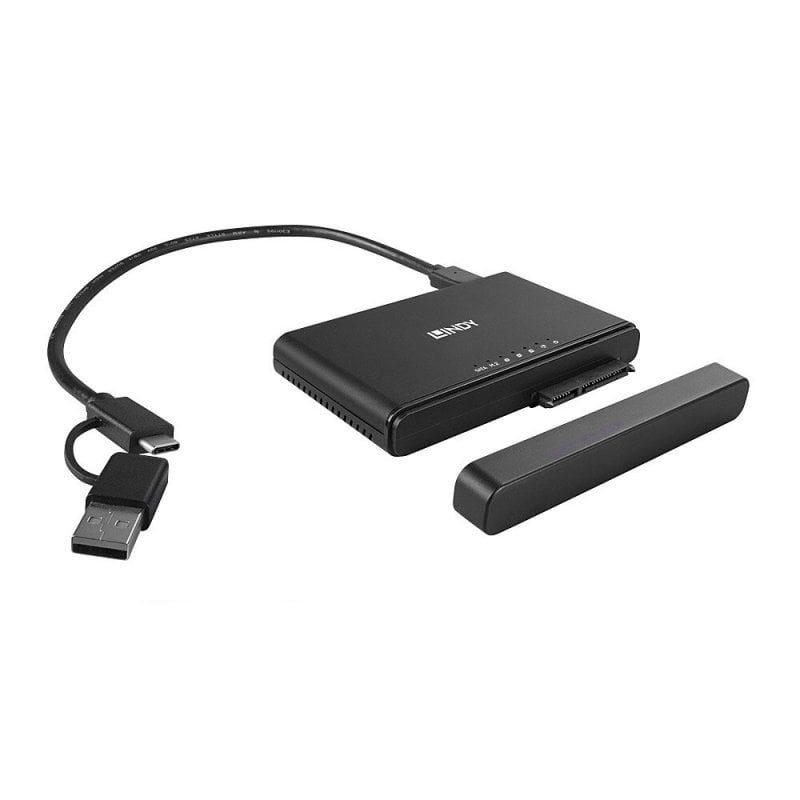

USB 3.2 Type C to M.2 NVMe &SATA SSD Clone Station

The Lindy USB 3.2 Gen 2 Type C M.2 NVMe & SATA SSD/HDD Docking & Clone Station features both high speed Docking as well as Clone functions. It supports simultaneous reading and writing to an M.2 NVMe SSD and a SATA SSD/HDD as well as Offline Cloning  (copying data without connection to a host computer)  from an M.2 NVMe SSD to a 2.5” or 3.5” SATA SSD or HDD as well as the other way round.

This Docking & Clone Station is an ideal tool for system installers and integrators, computer technicians and IT departments for quick backups or data recovery. It makes bit by bit clones (including Operating System and partitions) of the source disk onto the target disk, making it perfect for upgrading to larger capacity & different SSDs.

Information about USB 3.0, 3.1 & 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.

USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Specifications

• Interface: USB Type C to M.2 NVMe and SATA
• Interface Standard: USB 3.2 / 3.1 Gen 2, PCIe Gen 3x2, SATA 3.0
• Supported Bandwidth: 10Gbps, 15.75Gbps, 6Gbps
• Chipset: JMS581D
• Compatibility: USB Type C and Type A equipped computers
• Special Features: -

Connectors

• Inputs: 1 x USB Type C (Female)
• Outputs: 1 x PCIe based M.2 (M key and M+B key), SATA 22 Pin (Male)
• Power: 5.5/2.5mm DC socket

Physical Properties

• Dimensions WxDxH: 102x67.5x14.5mm (4.02x2.66x0.57in)
• (Fixed) Cable Length: -
• Housing Material: Aluminium & Plastic
• Net Weight: 0.26kg (0.57lb)
• Operating Temperature: 5°C - 35°C (41°F - 95°F)
• Storage Temperature: -20°C - 50°C (-4°F - 122°F)
• Humidity: 0 - 80% RH (non-condensing)
• Power Requirements: 12VDC 2A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 160x110x100mm (6.3x4.33x3.94in)
• Gross Weight: 0.39kg (0.86lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH, CP65

Package Contents

• USB 3.2 Type C to M.2 NVMe & SATA SSD Docking & Clone Station
• 12V DC 2A Multi-Country power supply
• USB 3.2 Gen 2 Type C to Type C/A cable, 26cm
• Aluminium sheet
• Thermal conductive silicone pad
• M.2 rubber cartridge
• Lindy Manual
