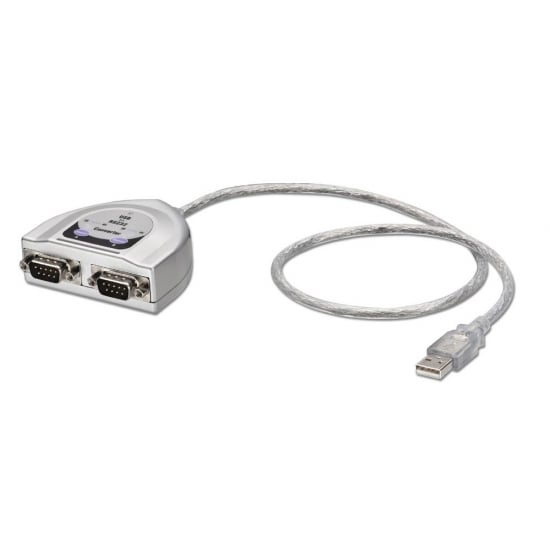

USB to 2 Port Serial Converter

The Lindy USB to 2 Port Serial Converter allows the user to easily connect two peripheral devices featuring 9 Way Serial RS232 simultaneously to a USB Type A port.

With both USB Type A and serial connectors, this device is a perfect solution for connecting legacy RS232 equipment such as barcode scanners and industrial devices to notebooks and Macbooks,  in retail, IT and digital signage scenarios.

This converter is compatible with both Windows and Mac operating systems and as it is USB bus-powered, it can be installed quickly and simply with no need for additional power supplies.

Specifications

• Interface: USB to 2 x RS232 Serial
• Interface Standard: USB 1.1, RS232
• Supported Bandwidth: 12Mbps, > 230kbps
• Chipset: FTDI
• Compatibility: USB Type A equipped computers
• Power Delivery: -
• Special Features: -

Connectors

• Inputs: 1 x USB Type A (Male)
• Outputs: 2 x RS232 9 way (Male)
• Power: Bus-powered

Physical Properties

• Dimensions WxDxH:
70x70x23mm (2.76x2.76x0.91in) / RS232
14x39x8mm (0.55x1.54x0.31in) / USB
• Cable Length: 60mm (2.36in)
• Housing Material: Plastic
• Net Weight: 0.08kg (0.18lb)
• Operating Temperature:  0°C - 50°C (32°F -122°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Humidity: 0 - 80% RH (non-condensing)
• Power Requirements: -
• Colour: Silver

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 243 x 139 x 35mm (9.57x5.47x1.38in)
• Gross Weight: 0.155kg (0.34lb)
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS & REACH

Package contents

• USB to 2 Port Serial Converter

Purchasing information

• No.: 42889
• EAN: 4002888428897

• Driver Windows 8
• Windows 7 32bit/64bit , Windows 2008 Drivers
• Driver Windows CE 4.2 to 6.0 ARM
• Mac 10.3 to 10.8 Driver
• Mac 10.9 Driver
• UKCA DoC for 42889
• Product Safety Information
