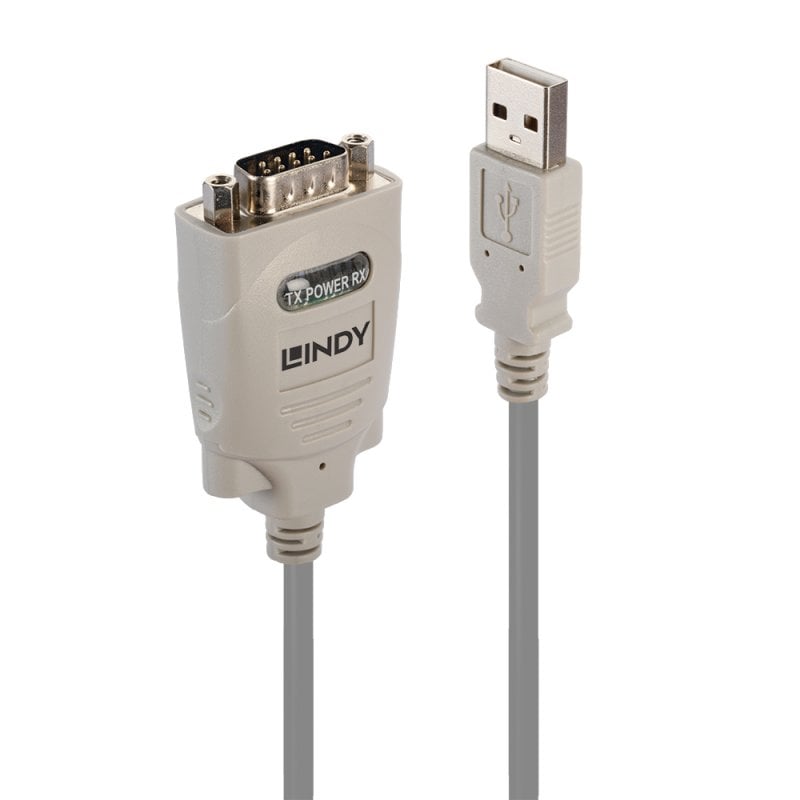

USB to Serial RS422 Converter

The Lindy USB to Serial Converter allows simple connection of peripheral devices featuring 9 Way Serial RS422 to a USB Type A port.

With both USB Type A and serial connectors, this device is a perfect solution for connecting legacy RS422 equipment such as barcode scanners and industrial devices to notebooks and Macbooks,  in retail, IT and digital signage scenarios.

This converter is compatible with Windows, Mac and Linux operating systems. It supports hot-swapping so the user can quickly switch serial devices without shutting down their computer.

The converter is USB bus-powered, it can be installed quickly and simply with no need for additional power supplies.

Specifications

• Interface: USB to RS422 Serial
• Interface Standard: USB 1.1, RS422
• Supported Bandwidth: 12Mbps, up to 3Mbps
• Chipset: FTDI FT231XS
• Compatibility: USB Type A equipped computers
• Power Delivery: -
• Special Features: Supports Full Duplex

Connectors

• Inputs: 1 x USB Type A (Male)
• Outputs: 1 x RS422 9 way (Male)
• Power: Bus-powered

Physical Properties

• Dimensions WxDxH:
• 33x55x14mm (1.3x2.17x0.55mm) / RS422
• 14x39x8mm (0.55x1.54x0.31in) / USB
• Cable Length: 1m (3.28ft)
• Housing Material: Plastic
• Net Weight: 0.077kg (0.17lb)
• Operating Temperature: 0°C - 50°C (32°F -122°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Humidity: 0 - 80% RH (non-condensing)
• Power Requirements: -
• Colour: Grey

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 174x194mm (6.85x7.64in)
• Gross Weight: 0.152kg (0.34lb)
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS & REACH

Package contents

• USB to Serial Converter

Purchasing information

• No.: 42844
• EAN: 4002888428446

• Driver Windows 8
• Mac 10.3 to 10.8 Driver
• Mac 10.9 Driver
• UKCA DoC for 42844
• Product Safety Information
