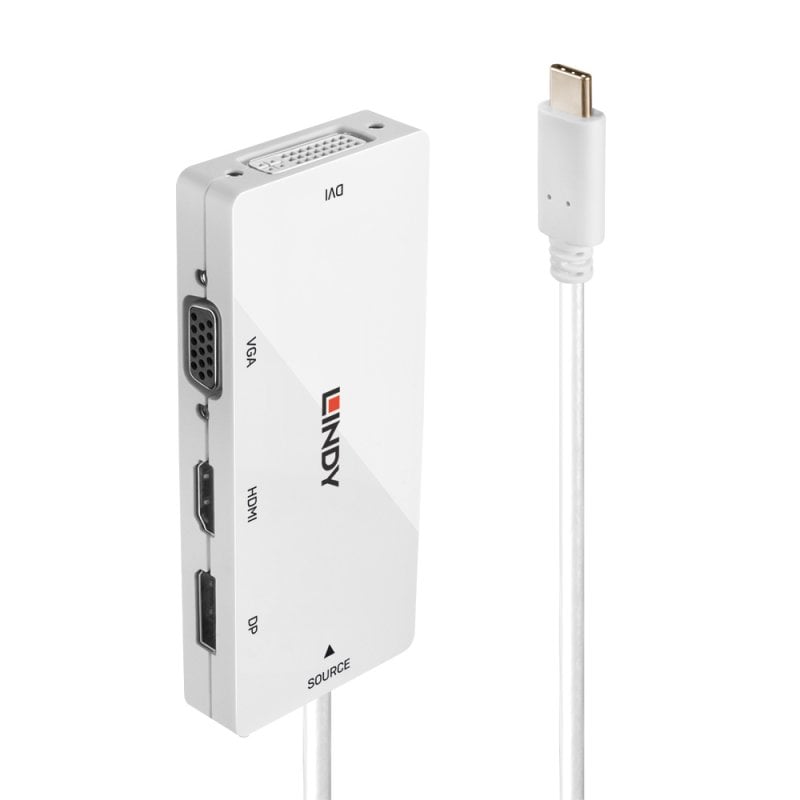

USB Type C to Multi-AV Converter

USB Type C to Multi-AV converters allow users to connect multiple AV interfaces to a USB C equipped device. The Lindy USB Type C to Multi-AV Converter connects either an HDMI®, DisplayPort, DVI or VGA display to a Macbook, Ultrabook or Notebook with USB DisplayPort Alternate Mode.

Supporting full 4K Ultra HD resolutions up to 3840x2160@60Hz on DP and HDMI® displays, content can be viewed with superior clarity and stunning accuracy. DVI and VGA monitors are supported with a maximum resolution of 1920x1200@60Hz.

With its lightweight, low profile design, this converter easily fits into a notebook bag and simply expands available connectivity options, so users can connect to the most commonly used digital and analogue video equipment, without having to carry multiple adapters - ideal for BYOD applications. The converter is powered by the USB Bus, therefore no external power supply is necessary. Installation is simple as no drivers are required and Type-C’s reversible design has been developed to work regardless of which way the cable is inserted into the port.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Specifications

• AV Interface: USB to DP / HDMI® / DVI / VGA
• Supported Bandwidth: HDMI® 2.0 with 18Gbps, DisplayPort 1.2 with 21.6Gbps
• Maximum Input Resolution: 4K 60Hz
• Maximum Output Resolution: 3840x2160@60Hz RGB 8bit (DP), 3840x2160@60Hz RGB 8bit (HDMI®),  1920x1200@60Hz (DVI) & 1920x1200@60Hz (VGA)
• Chipset: VL103, PS176, PS8348B, AG6320
• Compatibility: USB Type C/Thunderbolt equipped computers with DisplayPort Alternate Mode support
• Power Delivery: -
• HDCP Support: HDCP 2.2
• Supported Audio: Audio for DP and HDMI®
• Separate Audio Ports: -
• Special Features: -

Connectors

• Inputs: USB Type C (Male)
• Outputs: HDMI® Type A (Female), DisplayPort (Female), DVI-I (Female), VGA (Female)
• Power: Bus-powered

Physical Properties

• Dimensions (approx.) WxDxH:
Connector: 21x13x7mm (0.83x0.51x0.28in)
Housing: 105.5x46x14.5mm (4.15x1.81x0.57in)
• (Fixed) Cable Length: 145mm (5.71in)
• Housing Material: Plastic
• Net Weight: 0.077kg (0.17lb)
• Operating Temperature: 0° to 40° (32°F - 104°F)
• Storage Temperature: -10° to +70° (14°F - 158°F)
• Humidity: 10 - 85% RH (non-condensing)
• Power Requirements: -
• Colour: White

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 174x15x194mm (6.85x0.59x7.64in)
• Gross Weight: 0.086kg (0.19lb)
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS, REACH, Calif. Prop. 65

Package Contents

• USB Type C to Multi-AV Active Converter

Purchasing information

• No.: 43279
• EAN: 4002888432795

• UKCA DoC for 43279
• Product Safety Information
