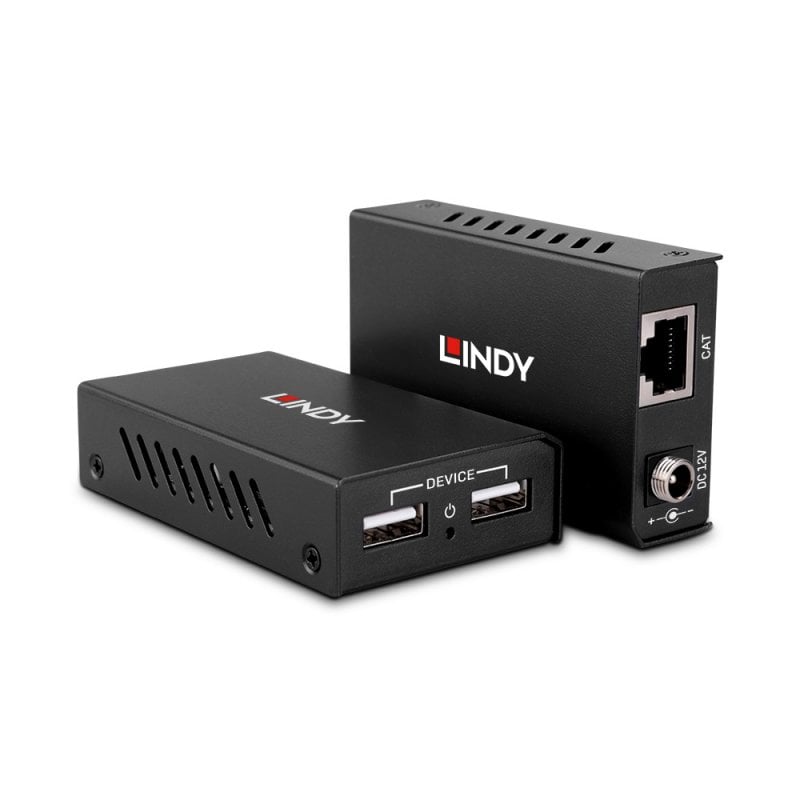

100m Cat.6 USB 2.0 2-Port Hub Extender

Part No: 43408
  • £165.41
Item out of Stock   |
Loading...

Product Summary

  • Extend 2 USB 2.0 ports up to 100m using low cost Cat. 5e/6 network cable (not included)
  • Bi-directional PoC (Power over Cable) requires a power supply connection from only one side of the installation
  • Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
  • Plug & Play installation
  • 2 year warranty

This Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between two USB peripheral devices and the host computer by up to 100m. A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.

The Extender features bidirectional Power over Cable (PoC) functionality, which provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit.

With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.

Please note: This product contains one USB 2.0 hub, which needs to be considered if the product is deployed in a larger installation in connection with other devices.



Specifications

  • USB Standard: USB 2.0
  • Supported Bandwidth: 480Mbps
  • Maximum Distance: 100m (328.08ft)
  • Transmission Medium: Cat.5e/6 or higher network cable
  • Chipset: VA6000
  • Special Features: Power over Cable;  Supports control, bulk, interrupt and isochronous data transfer

Connectors

  • Transmitter Input: USB Type B (Female)
  • Transmitter Output: RJ45 (Female)
  • Receiver Input: RJ45 (Female)
  • Receiver Output: 2 x USB Type A (Female)
  • Power: 5.5/2.5mm DC socket

Physical Properties

  • Dimensions WxDxH: 82x49x20mm (3.23x1.93x0.79in) each
  • Housing Material: Metal
  • Net Weight: 0.2kg (0.44lb)
  • Operating Temperature: 0° - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Power Requirements: 12VDC 3A
  • Colour: Black

 Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 200x115x75mm (7.87x4.53x2.95in)
  • Gross Weight: 0.6kg (1.32lb)
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, RoHS & REACH, CP65

Package Contents

  • Transmitter unit
  • Receiver unit
  • 0.9m USB 2.0 A Male to B Male cable
  • Multi-Country Power Supply (EU, UK, US & AUS)
  • Lindy Manual

Purchasing Information

  • No.: 43408
  • EAN: 4002888434089
Be the first to review 100m Cat.6 USB 2.0 2-Port Hub Extender. Write a review
