100m Cat.6 USB 2.0 USB-C Extender

The Lindy 100m USB 2.0 Type C Cat.6 Extender can be used to extend the distance between a USB peripheral device and a Type C equipped host computer by up to 100m.

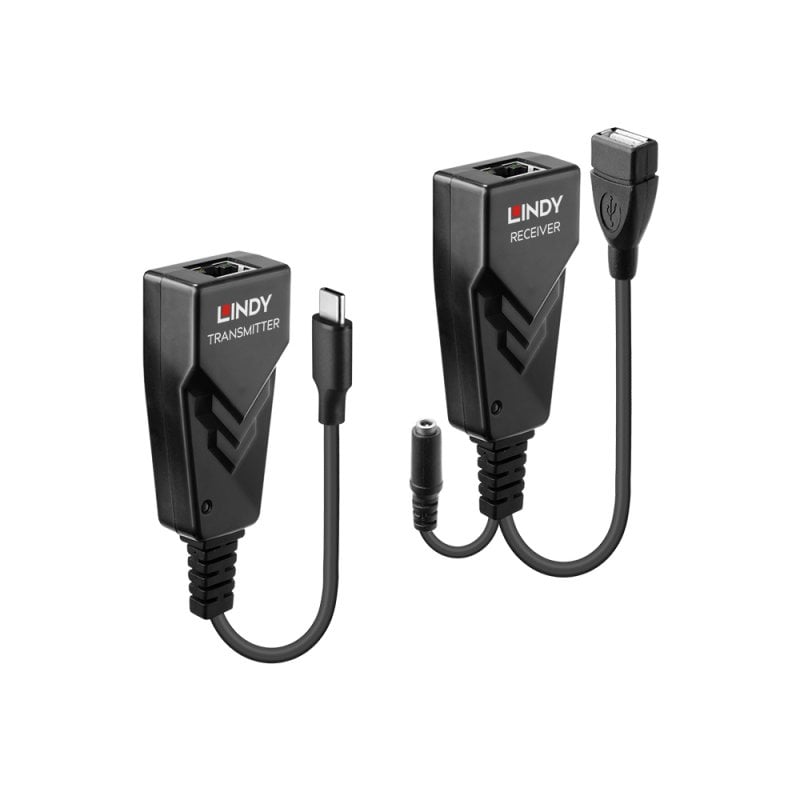

It consists of a transmitter unit which connects to the computer via USB Type C and a receiver unit that connects to a USB Type A device. Standard Cat.5e/6 network cable (not included) is then used to bridge the connection between the two units. For best performance and compatibility, we recommend the use of solid core patched cables.

For added convenience this USB 2.0 Extender is supplied with a power supply, which can be connected should additional power be required.

*Please note: This extender might not support USB devices that require high bandwidths such as FullHD webcams.

Specifications

• USB Standard: USB2.0
• Supported Bandwidth: 480Mbps
• Maximum Distance: 100m (328.08ft)
• Transmission Medium: Cat. 5e/6 UTP network cable
• Chipset: CH317Q, CH9317, RTL8211E
• Special Features:  Supports isochronous data transfer

Connectors

• Transmitter Input:  USB Type C (Male)
• Transmitter Output:  RJ45 (Female)
• Receiver Input:  RJ45 (Female)
• Receiver Output: USB Type A (Female)
• Power: 3.5/1.35mm DC socket

Physical Properties

• Dimensions WxDxH: 69x36x22mm (2.72x1.42x0.87in)
• Housing Material: Plastic
• Net Weight: 0.05kg (0.11lb) per unit
• Operating Temperature: 0° - 40°C (32°F - 104°F)
• Storage Temperature: -10°C - 60°C (14°F - 140°F)
• Humidity: 0 - 80% RH (non-condensing)
• Power Requirements: 5V DC 2A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 200x200x48mm (7.87x7.87x1.89in)
• Gross Weight: 0.38kg (0.84lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS & REACH, CP65

Package contents

• Transmitter unit
• Receiver unit
• Multi-Country Power Supply (EU, UK, US & AUS)
• Lindy Manual

 Purchasing Information

• No.: 43390
• EAN: 4002888433907

• UKCA Declaration of Conformity
• Manual for 43390
• Product Safety Information
