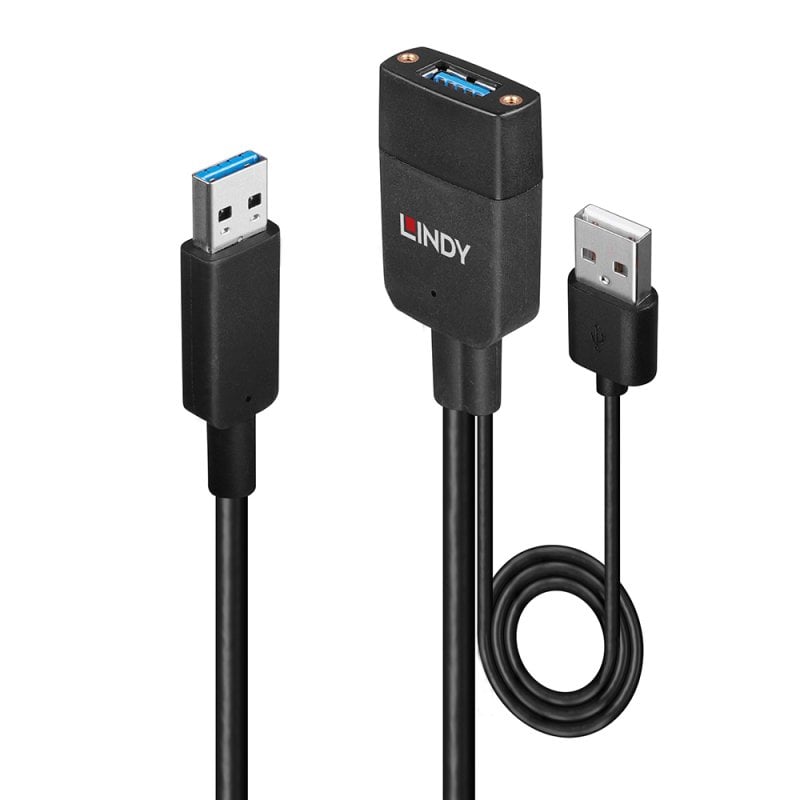

35m USB 3.2 Gen 2 Hybrid Fibre Optic USB-A Cable

Part No: 43357
  • £261.29
22 In Stock Now   |
Loading...

Product Summary

  • 35m Hybrid USB 3.2 Gen 2 Cable combines the benefits of a copper and fibre optic cable
  • Supports transfer rates up to 10Gbps
  • USB Type A connection to computer and device
  • Low RFI/EMI for sensitive environments
  • 2 year warranty

The Lindy Hybrid USB 3.2 Cable extends a USB port by 35m, far longer than is possible with standard or active copper cables, whilst retaining SuperSpeed transfer rates of up to 10Gbps (backwards compatible with USB 2.0 devices). A lighter and more flexible construction makes this cable simple to install with cable trays and through conduits, whilst low RFI/EMI ensures that the cable can be installed in the most sensitive of environments.

This Hybrid Cable supports a variety of USB devices like storage media or webcams. It is fully compatible with, and can be used to extend signals from, 4K USB 3.2/3.1 webcams and video conferencing systems.

The screw-locking design of the USB Type A socket ensures a secure connection of the device.

For added convenience the Hybrid cable is bus-powered and features a USB Type A power cable,  which can be attached to an external USB Power Supply (not included) should additional power be required.

Connectors
  • Connector A: USB Type A Male
  • Connector B: USB Type A Female
  • Power: USB Type A Male
  • Housing Material: TPE
  • Connector Plating: Stainless Steel C2650, Solder Nickel
  • Pin Construction: Copper Alloy, Mating Area AU
  • Pin Plating: Mating Area AU 1U
  • Dimensions (approx.) WxDxH:
    • USB A Male: 42.85x16x8mm (1.69x0.63x0.31in)
    • USB A Female: 43x28.4x7.12mm (1.69x1.12x0.28in)

Cable Construction

  • Length: 35m (114.83ft)
  • Standard: USB 3.2/3.1 Gen 2
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 5.0mm (0.2in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Wire
  • Conductor Gauge: 26AWG (STP), 22AWG*2 (VBUS)
  • Shielding: AL

Specifications

  • Supported Bandwidth: 10Gbps
  • Included Hubs: 1x USB 3.0
  • Nominal Attenuation: -
  • Minimum Bend Radius: 40mm (1.57in), static
  • Maximum Tensile Load: 500N (short term)
  • Operating Temperature: -20°C - 70°C (-4°F - 158°F)
  • Storage Temperature: -40°C - 85°C (-40°F - 185°F)
  • Transmission Medium: Optical Fiber
  • Transmission Technology: Optoelectronic Transmission



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 240x240x65mm (9.45x9.45x2.56in)
  • Net Weight: 1.35kg (2.98lb)
  • Gross Weight: 1.5kg (3.31lb)
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, RoHS & REACH, CP 65

Package Contents

  • 35m USB 3.2 Gen 2 Hybrid Cable with fixed 70cm USB Power Cable Type A
  • Lindy manual

Purchasing Information

  • No.: 43357
  • EAN: 4002888433570
