50m Cat.6 USB 1.1 Extender

Part No: 42805
  • £45.06
Item out of Stock   |
Loading...

Product Summary

  • Extends a single USB port up to 50m using low cost Cat.5e/6 network cable (not included)
  • Supports data transfer rates of up to 12Mbps
  • Plug and Play Installation, OS independant
  • Powered by the USB Bus
  • 2 year warranty

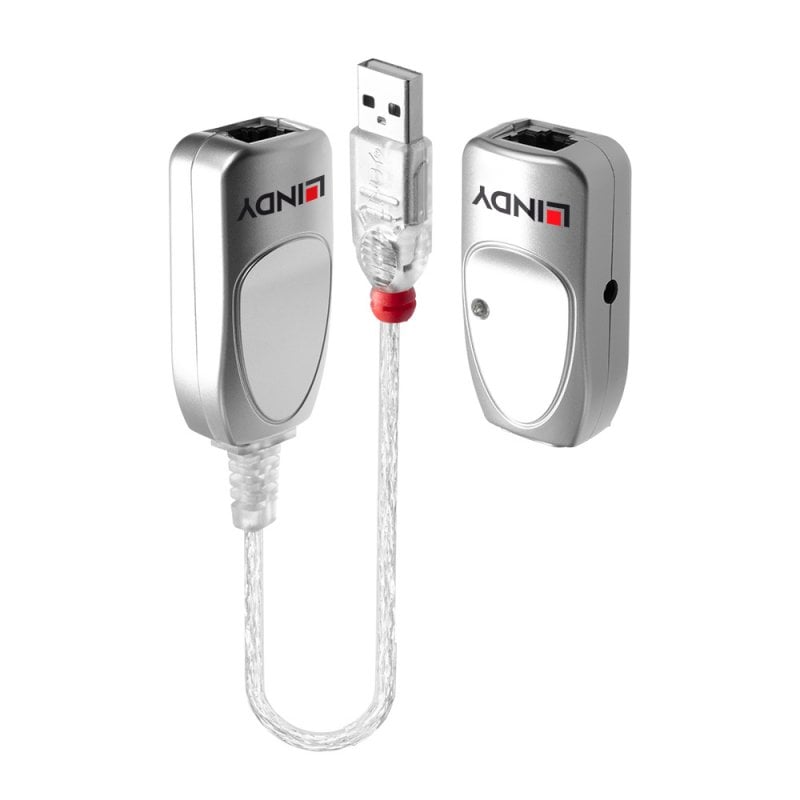

The Lindy Cat.6 USB Extender can be used to extend the distance between a USB device and a host computer by up to 50m. It consists of a local unit, which can be connected to the computer or laptop and a remote unit which connects to USB devices like storage devices, perfect for long-distance access to files.

Standard, low-cost Cat.5e/6 cable (not included) is used to connect the two units together. For best performance and compatibility, we recommend the use of solid core patched cables.

A power supply can be connected optionally for use with high current USB devices.

Specifications
  • USB Standard: USB 1.1
  • Supported Bandwidth: 12Mbps
  • Maximum Distance: 50m (164.04ft)
  • Transmission Medium: Cat.5e/6 or higher network cable
  • Chipset: LAN0101
  • Special Features: Supports isochronous data transfer
Connectors
  • Transmitter Input: USB Type A (Male)
  • Transmitter Output: RJ45 (Female)
  • Receiver Input: RJ45 (Female)
  • Receiver Output: USB Type A (Female)
  • Power: 3.5/1.35mm DC socket
Physical Properties
  • Dimensions WxDxH: 30x63x20mm (1.18x2.48x0.79in)
  • Housing Material: Plastic
  • Net Weight: 0.06kg (0.13lb)
  • Operating Temperature: -0° - 70°C (32°F - 158°F)
  • Storage Temperature: -20°C - 80°C (-4°F - 176°F)
  • Humidity: 0 - 90% RH (non-condensing)
  • Power Requirements: -
  • Colour: Grey
Miscellaneous
  • Packaging Type: Carton Box
  • Packaging Dimensions: 249x156x27mm (9.8x6.14x1.06in)
  • Gross Weight: 0.119kg (0.26lb)
  • Warranty (Years): 2
  • Certified: CE, UKCA, FCC, RoHS & REACH
Package contents
  • Transmitter unit
  • Receiver unit
  • Lindy Manual
Purchasing information
  • No.: 42805
  • EAN: 4002888428057
