50m Cat.6 USB 2.0 2-Port Hub Extender

Part No: 43386
  • £154.19
172 In Stock Now   |
Loading...

Product Summary

  • Extend 2 USB 2.0 ports up to 50m using low cost Cat.6 network cable (not included)
  • Bi-directional PoC (Power over Cable) requires a power supply connection from only one side of the installation
  • Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
  • Plug & Play installation
  • 2 year warranty

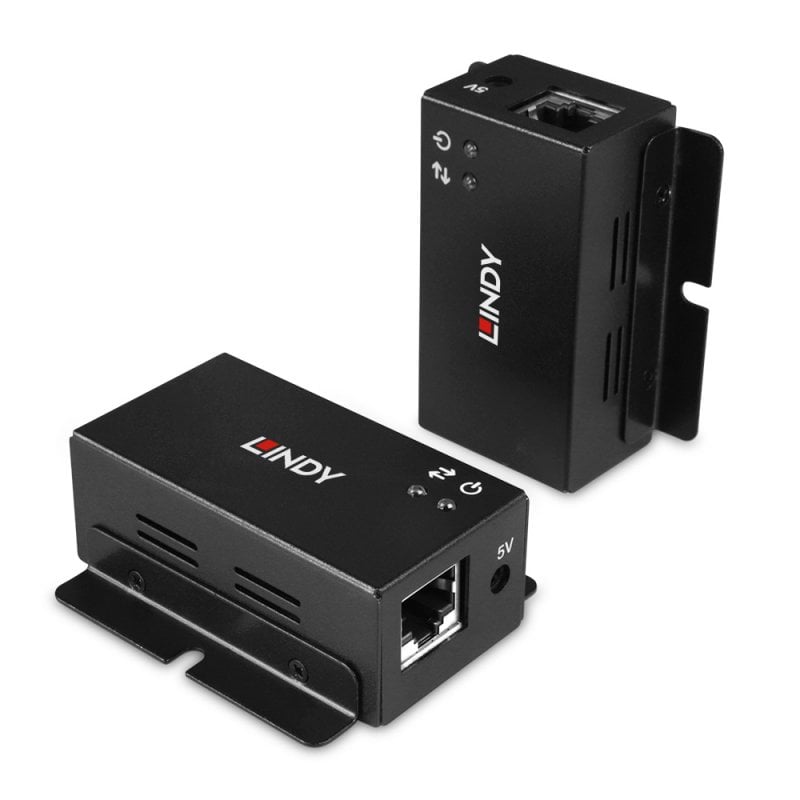

This Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between two USB peripheral devices and the host computer by up to 50m. A standard, low cost Cat.6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.

The Extender features bidirectional Power over Cable (PoC) functionality, which provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit.

With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.

Specifications

  • USB Standard: USB 2.0
  • Supported Bandwidth: 480Mbps
  • Maximum Distance: 50m (164.04ft)
  • Transmission Medium: Cat.5e/6 or higher network cable
  • Chipset: NS1021
  • Special Features: Bidirectional Power over Cable; Supports control, bulk, interrupt and isochronous data transfer

Connectors

  • Transmitter Input: USB Type B (Female)
  • Transmitter Output: RJ45 (Female)
  • Receiver Input: RJ45 (Female)
  • Receiver Output: 2 x USB Type A (Female)
  • Power: 3.5/1.35mm DC socket

Physical Properties

  • Dimensions WxDxH:
    • 60.2x67x23.7mm (2.37x2.64x0.93in) (TX)
    • 60.2x67x26mm (2.37x2.64x1.02in) (RX)
  • Housing Material: Metal
  • Net Weight: 0.195kg (0.43lb)
  • Operating Temperature: 0°C – 50°C (32°F – 122°F)
  • Storage Temperature: -40°C - 125°C (-40°F - 257°F)
  • Humidity: 0 - 90% RH (non-condensing)
  • Power Requirements: 5VDC 2A
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 230x198x63mm (9.06x7.8x2.48in)
  • Gross Weight: 0.59kg (1.3lb)
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, RoHS & REACH, California Proposition 65

Package Contents

  • Transmitter unit
  • Receiver unit
  • 0.6m USB 2.0 A Male to B Male cable
  • Multi-Country Power Supply (EU, UK, US & AUS)
  • Lindy Manual

Purchasing Information

  • No.: 43386
  • EAN: 4002888433860
