60m Cat.6 USB 1.1 Basic Extender

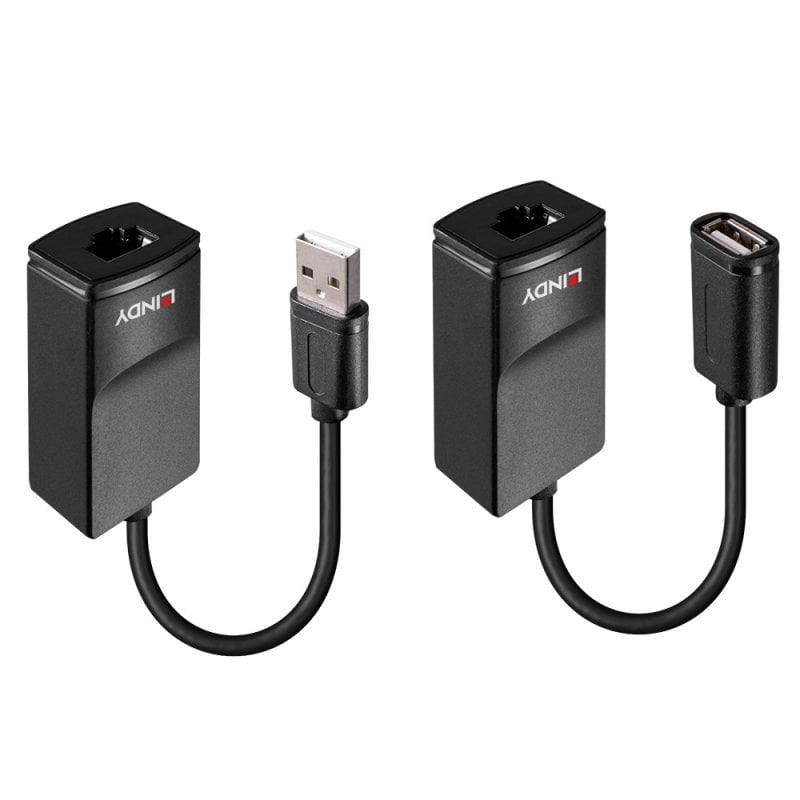

The Lindy Cat.6 USB Extender can be used to extend the distance between a USB device and a host computer by up to 60m. It consists of a local unit, which can be connected to the computer or laptop and a remote unit which connects to USB devices like mice or keyboards, perfect for long distance access.

Standard, low cost Cat.5e/6 cable (not included) is used to connect the two units together. For best performance and compatibility, we recommend the use of solid core patched cables.

Specifications

• USB Standard: USB 1.1
• Supported Bandwidth: 12Mbps
• Maximum Distance: 60m (196ft)
• Transmission Medium: Cat.5e/6 or higher network cable
• Chipset: BCH4105G
• Special Features: Supports control, bulk, interrupt and synchronous data transfer

Connectors

• Transmitter Input: USB Type A (Male)
• Transmitter Output: RJ45 (Female)
• Receiver Input: RJ45 (Female)
• Receiver Output: USB Type A (Female)
• Power: -

Physical Properties

• Dimensions WxDxH:
  • Transmitter: 53x26x20mm (2.09x1.02x0.79in)
  • Receiver: 53x26x20mm (2.09x1.02x0.79in)
• Housing Material: Plastic
• Net Weight: 0.054kg (0.12lb)
• Operating Temperature: 0° - 70°C (32°F - 158°F)
• Storage Temperature: -20°C - 80°C (-4°F - 176°F)
• Humidity: 0 - 90% RH (non-condensing)
• Power Requirements: -
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 180x105x30mm (7.09x4.13x1.18in)
• Gross Weight: 0.113kg (0.25lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH, CP65

Package Contents

• Transmitter unit
• Receiver unit
• Lindy Manual

Purchasing information

• No.: 43365
• EAN: 4002888433655

• Manual for 43365 60m USB 1.1 Cat.6 Extender Basic
• Data sheet for 43365 60m USB 1.1 Cat.6 Extender Basic
• UKCA DoC for 43365
• Product Safety Information
