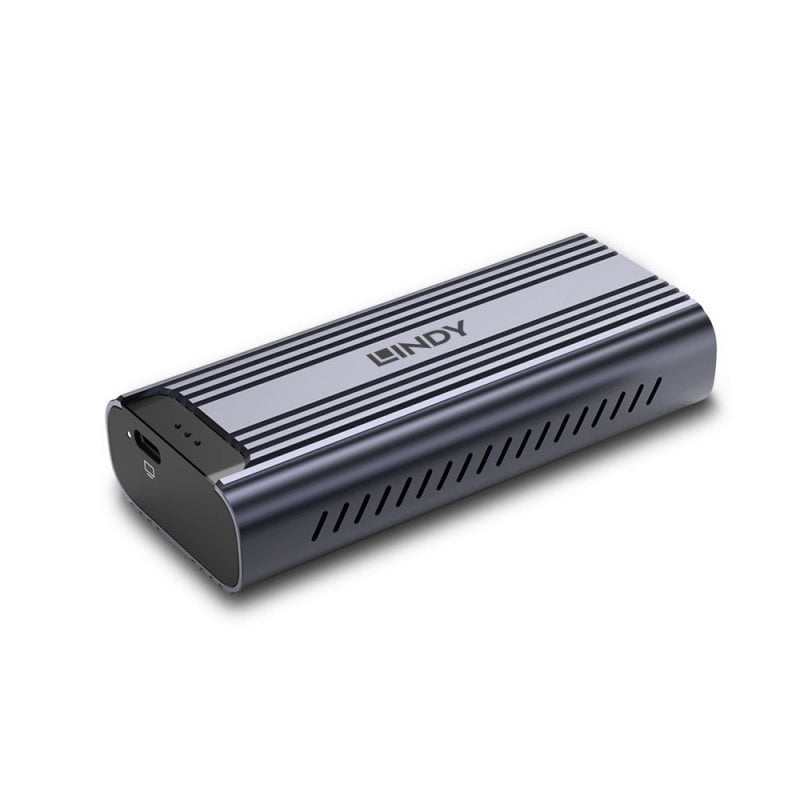

USB4 NVMe M.2 SSD Enclosure

Part No: 43394
  • £99.47
1 In Stock Now   |
Loading...

Product Summary

  • Aluminium Enclosure for PCIe/NVMe based M.2 SSDs (not included)
  • USB4 standard with extremely fast 40Gbps data transfer rates*
  • Aluminium housing with Aluminium heatsink for excellent heat dissipation, ensuring a suitable operating temperature
  • Plug & Play, no drivers required
  • 2 year warranty

The Lindy USB4 NVMe M.2 SSD Enclosure allows the user to install a PCIe/NVMe based M.2 SSD as an external drive to USB4 or Thunderbolt Type C hosts like laptops or PCs. Support for the USB4 standard guarantees extremely fast data transfer rates up to 40Gbps.*

This Lindy enclosure is compatible with PCIe/NVMe based M.2 SSDs with M key or B + M key in 42, 60 and 80mm lengths.  The Aluminium housing with Aluminium heatsink ensures excellent heat dissipation and a suitable operating temperature. The tool-free design makes installation very easy.

* Please note that 40Gbps full support is only possible with a USB4, Thunderbolt 3 or 4 host controller.

Specifications

  • Interface: USB to PCIe/NVMe M.2 SSD
  • Interface Standard: USB4, PCIe 4.0 x4
  • Supported Bandwidth: 40Gbps
  • Chipset: ASM2464PD
  • Compatibility: USB4/Thunderbolt Type C equipped computers
  • Special Features: supports 42/60/80mm SSDs, SSDs with max. 12mm height, UASP & TRIM

Connectors

  • Inputs: 1 x USB Type C (Female)
  • Outputs: 1 x PCIe based M.2 (Female), M key and B+M key
  • Power: Bus-powered

Physical Properties

  • Dimensions WxDxH: 107x47x24mm (7.09x4.13x1.81in)
  • Cable Length: 0.15m (5.9ft)
  • Housing Material: Aluminium
  • Net Weight: 0.088kg (0.19lb)
  • Operating Temperature: 0°C - 45°C  (32°F - 113°F)
  • Storage Temperature: -10°C - 70°C  (-14°F - 158°F)
  • Humidity: 10 - 85% RH (non-condensing)
  • Power Requirements: -
  • Colour: Dark Grey

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 180x105x30mm (7.09x4.13x1.18in)
  • Gross Weight: 0.2kg (0.44lb)
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, RoHS & REACH, CP65

Package Contents

  • USB4 NVMe M.2 SSD Enclosure
  • 0.15m USB4 40Gbps FPC Flat cable
  • Aluminium Heatsink Kit (Aluminium Heatsink, Metal Bracket, 2x Silicone Thermal Pad, 4x Screws)
  • 1x Mini Screwdriver
  • 2x Screw + Nut
  • Lindy Manual

Purchasing Information

  • No.: 43394
  • EAN: 4002888433945
